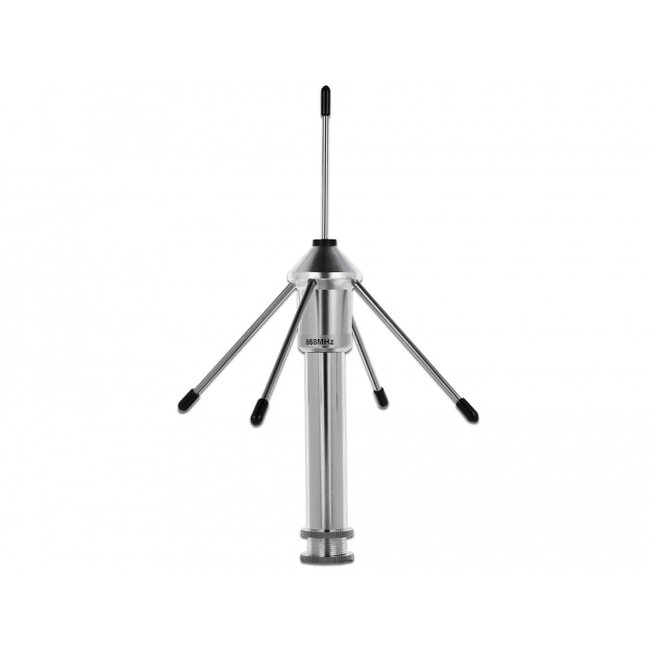

This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.

LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and a low energy consumption.

• Connector: 1 x TNC jack
• Frequency range: 868 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical
• Operating temperature: -50 °C ~ 70 °C
• Housing material: steel
• Colour: silver
• Cable: coaxial
• Cable type: RG-58 C/U
• Cable attenuation: 0.73 dB @ 1.0 GHz per meter
• Cable diameter: ca. 4.95 mm
• Smallest bending radius: 20 mm
• Cable length incl. connectors: ca. 3.0 m
• Dimensions (LxD): ca. 230.0 x 19.1 mm

• Device with one free TNC port

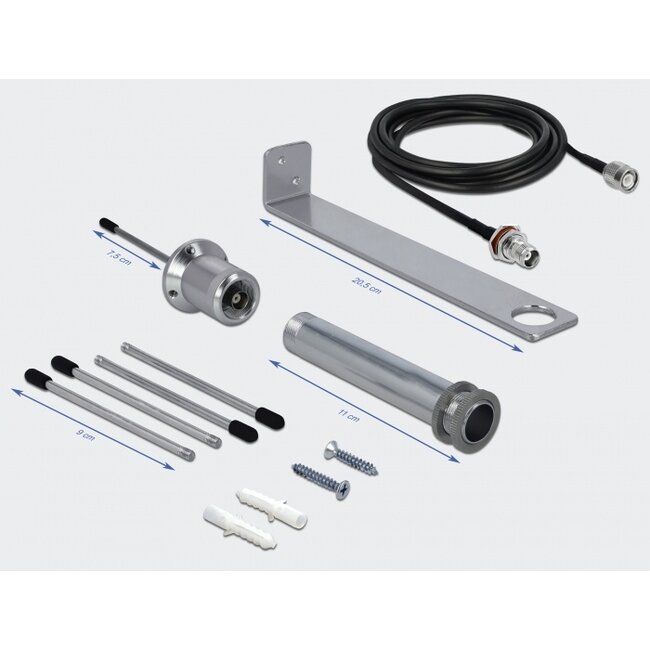

Package content

• Antenna
• Wall mounting brackets
