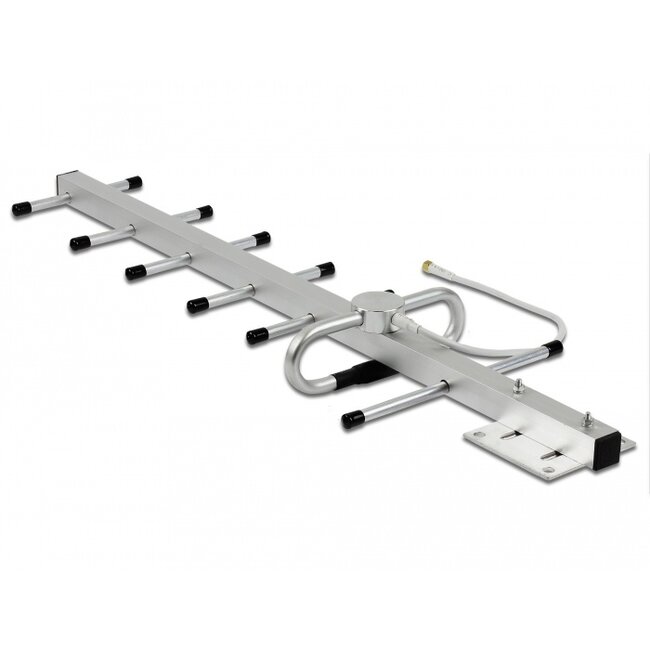

This antenna by Delock allows the usage of the 806 - 896 MHz band indoors and outdoors.

LPWAN
LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption.

• Connector: 1 x SMA plug
• Frequency range: 806 - 896 MHz
• LoRa, Sigfox, ZigBee, Z-Wave
• Antenna gain: 10 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical, horizontal
• HBW horizontal beamwidth: 60°
• VBW vertical beamwidth: 50°
• Operating temperature: -40 °C ~ 60 °C
• Housing material: aluminium alloy
• Colour: silver
• Dimensions (L): ca. 586 mm
• Weight: ca. 0.5 kg
• Maximum wind speed: 60 m/s

• Device with a free SMA jack

Package content

• Antenna

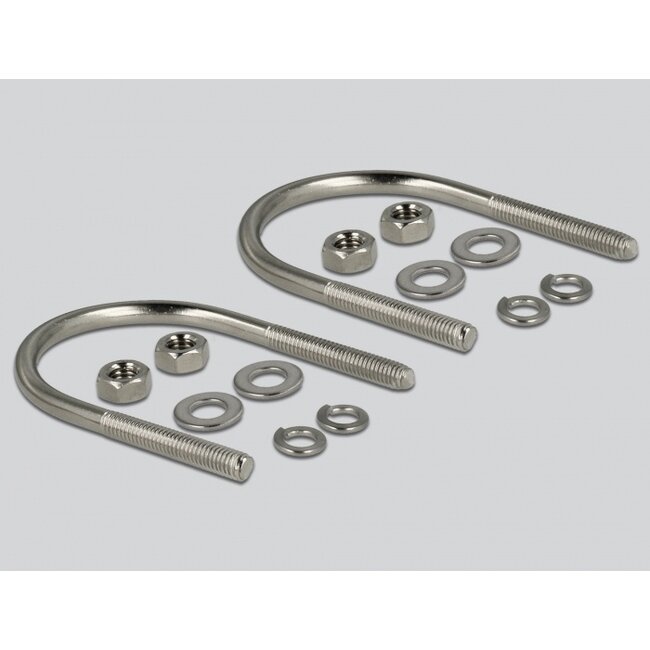

• Mounting material
