This KVM switch by Delock is a convenient solution for connecting four computers with HDMI output to one HDMI monitor. Furthermore, four USB 2.0 Type-A ports can be used to connect a mouse, keyboard, printer or USB drive.

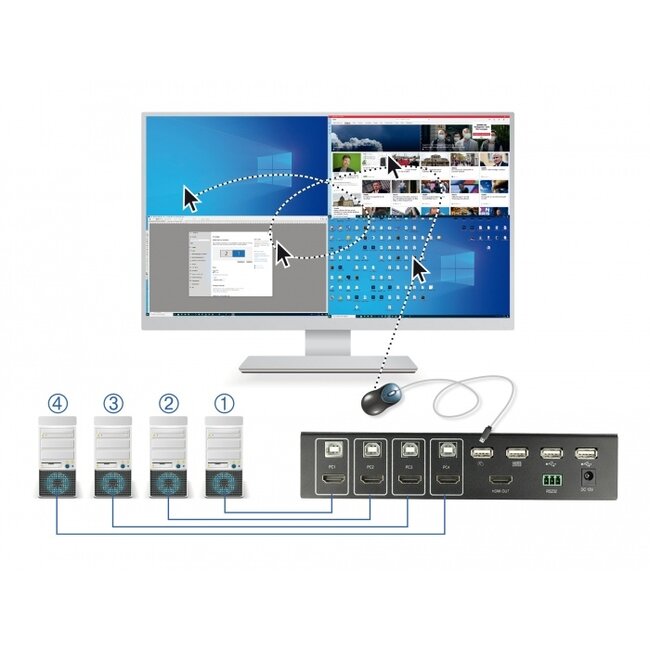

4 in 1 Multiview Mode
In Multiview Mode, all 4 PCs are displayed on one monitor simultaneously. Operating the keyboard and mouse is possible without switching. When the mouse is moved over one of the desktops, it is activated for input. Alternatively, the Sync Mode can be turned on, where all connected PCs receive the same signals from the input devices.

Flexible Control
The active computer can be selected by mouse button, keyboard hotkey, button on the device or infrared remote control.

Note
KVMs emulate a standard wired 104 key keyboard and wired generic 2 or 3 button scroll wheel mouse on their respective console ports. Whether or not a wireless or gaming mouse and keyboard work with KVM switches depends on several factors; in general, most wireless mice and keyboards do not support working with KVM switches. We recommend to use a standard wired mouse and keyboard with our KVM switches.

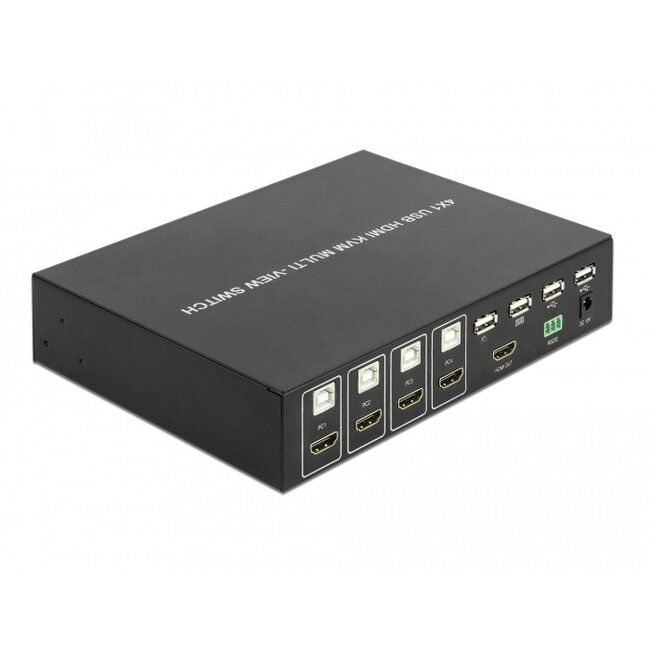

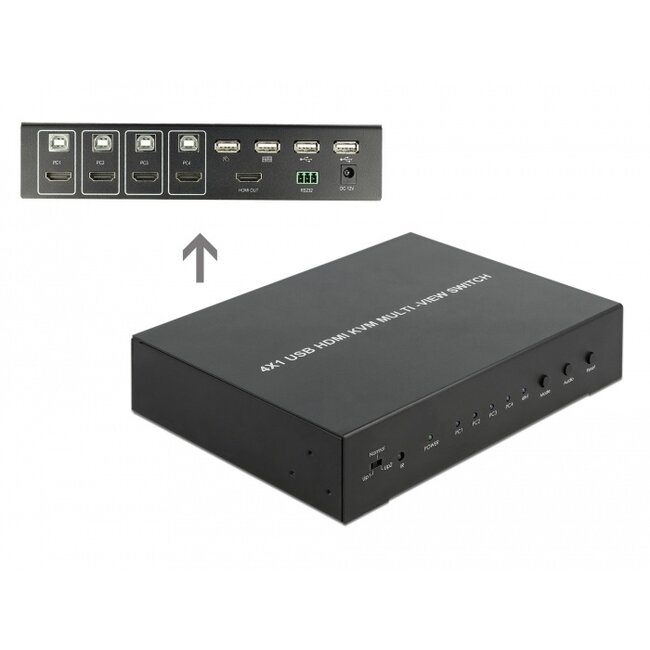

• Connectors:
Input:
4 x HDMI-A female
4 x USB 2.0 Type-B female
1 x 12 V DC jack
Output:
1 x HDMI-A female
4 x USB 2.0 Type-A female
• 2 switch buttons with LED indicator for source (PC1 - PC4) and audio
• Switching via button, mouse button, hotkey or infrared remote control
• High Speed HDMI specification
• Supports HDCP 1.2
• Resolution (HDMI input) up to 1920 x 1080 @ 60 Hz
(depending on the system and the connected hardware)
• Resolution (HDMI output) 1280 x 720 or 1920 x 1080 @ 50 or 60 Hz
• Video bandwidth up to 225 MHz / 2.25 Gbps
• USB 2.0 up to 480 Mbps
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 210 x 160 x 44 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 12.0 V / 2.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm

• PC with HDMI female + USB Type-A female
• Monitor or TV with HDMI connector

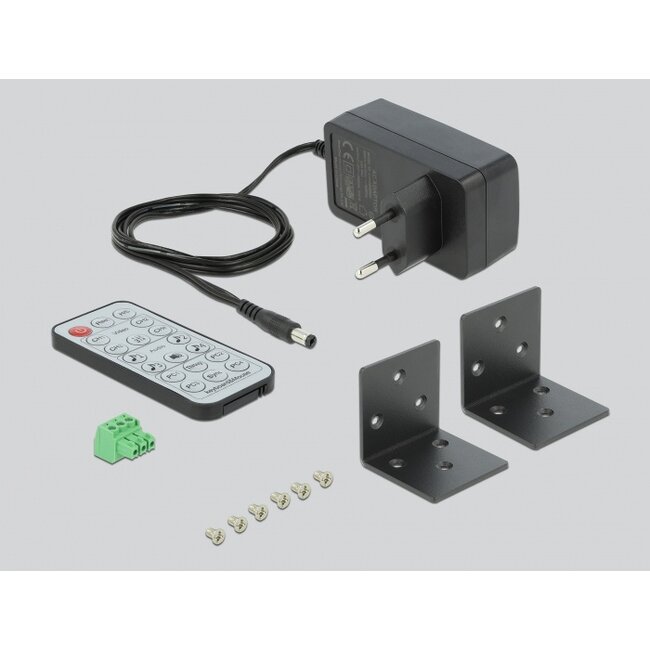

Package content

• KVM switch
• Remote control
• External power supply
• Mounting brackets and screws
• User manual
