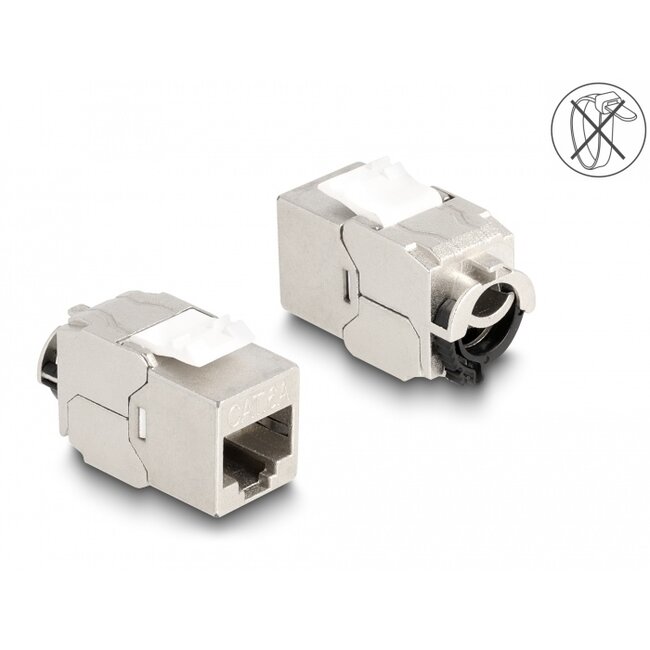

This module by Delock can be used to connect a network cable and is suitable for easy snap-in mounting in various holders, such as keystone patch panels, face plates or surface-mount boxes.
Cable tie-free

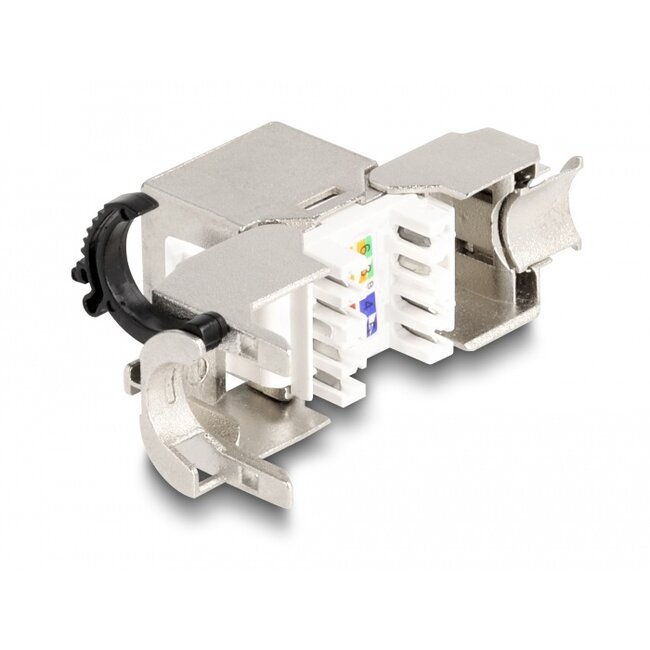

On the back of the module there is a locking clip with which the network cable can be fixed and fastened without cable ties.
• Connectors:
1 x RJ45 jack
1 x LSA (toolfree)
• Cat.6A specification
• Shielded (STP)
• Mounting without cable ties

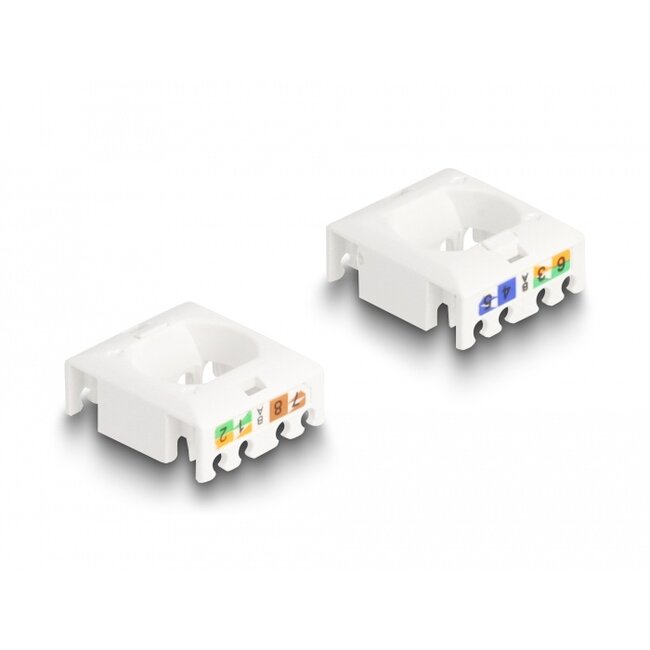

• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• For cable diameter from 6.0 - 8.5 mm
• For Keystone ports with 19.2 x 14.9 mm
• Material: zinc diecast
• Dimensions (LxWxH): ca. 31.5 x 19.4 x 18.8 mm
• Keystone module
• Cable manager
