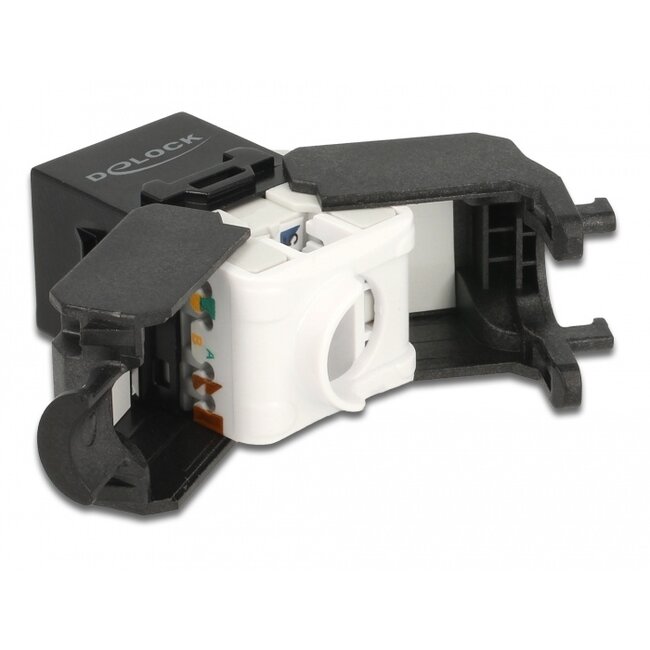

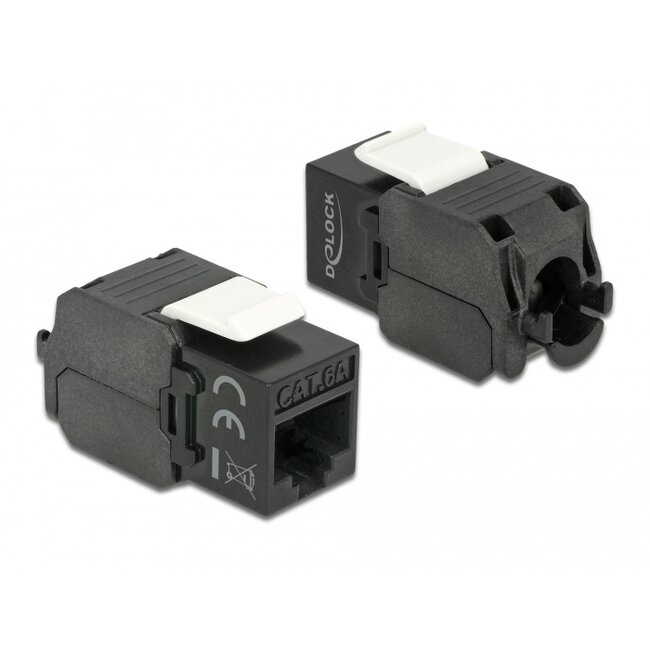

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patchpanel, face plate or surface-mount box.
Specification• Connector: RJ45 jack (8P/8C) > LSA (tool-free)
• Unshielded (Cat.6A)
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2,
EN 50173-1:2011 and EN 60603-7-51, Cat.6A of ANSI/TIA 568-C.2
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)

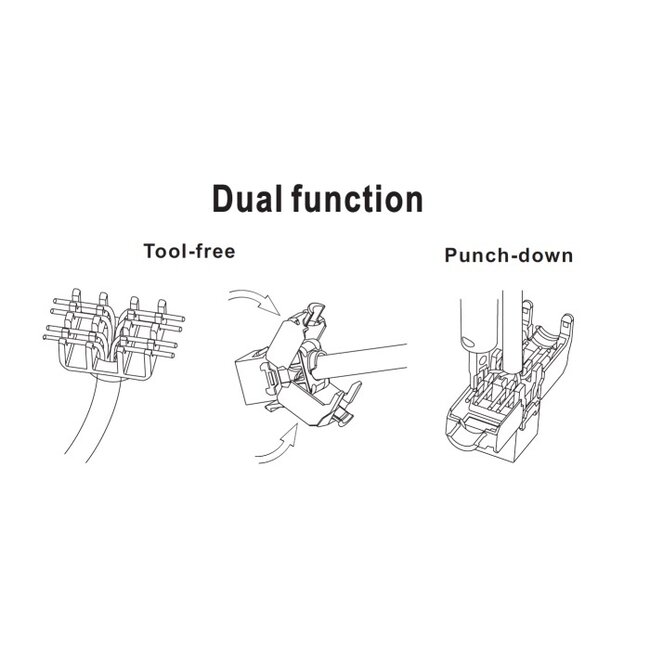

• Mounting with LSA-tool or tool-free
• For Keystone ports with 19.2 x 14.9 mm
• Colour: black
• Dimensions (LxWxH): ca. 37.8 x 16.0 x 22.5 mm
• Keystone module

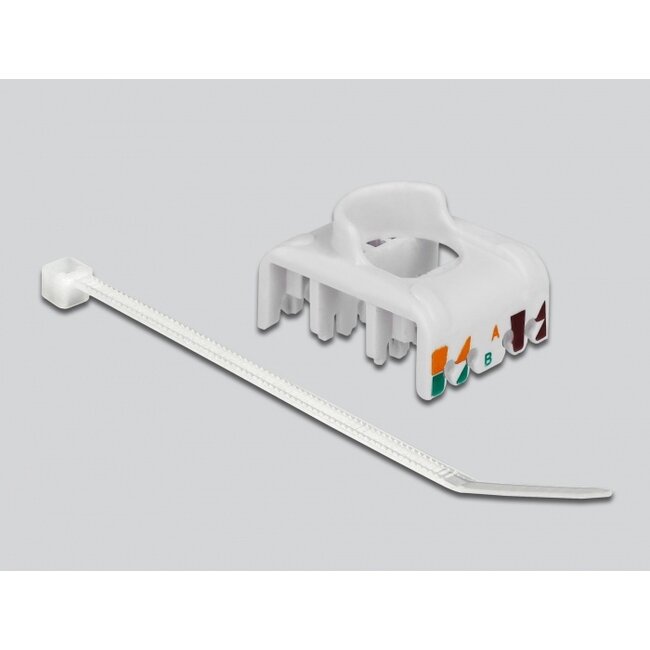

• Two covers (depending on mounting)
• Zip-tie
