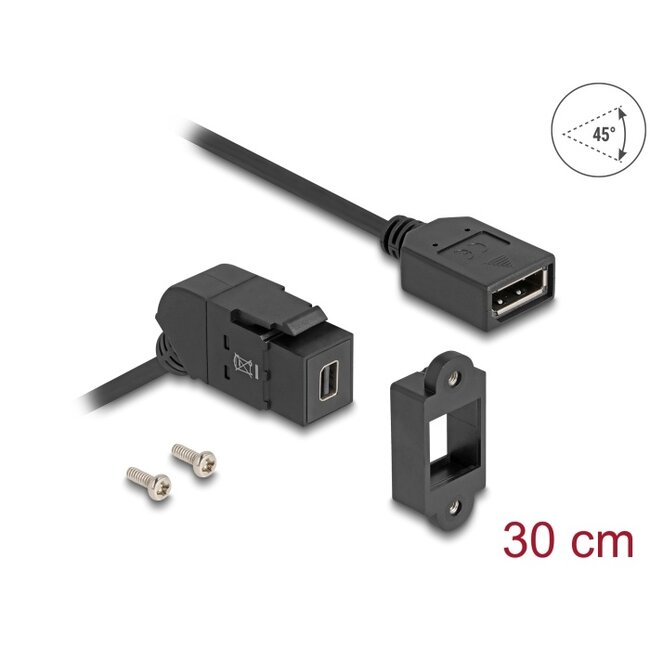

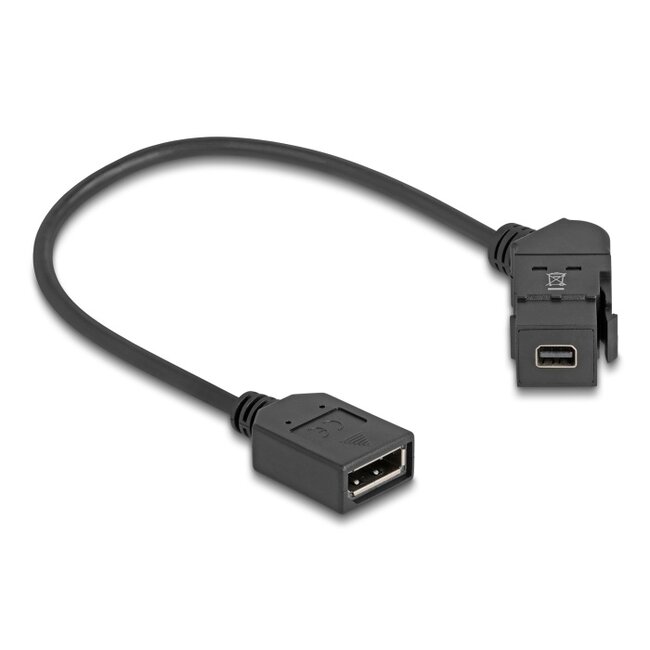

This module by Delock can be used to extend e.g. a DisplayPort cable.
With mounting holder for installation
The adapter can be installed e.g. on a panel, in a housing or switch cabinet.
The angled connection enables space-saving installation in tight spaces and hard to reach places in equipment or in cable ducts.
• Connectors:
1 x mini DisplayPort female 45° angled for installation
1 x DisplayPort female
• DisplayPort 1.2 specification
• Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected hardware)
• Contacts gold-plated
• Cable gauge: 32 AWG
• With mounting holder for installation
• Holder (WxH): ca. 40 x 18 mm
• Mounting hole diameter: ca. 2.2 mm
• Pitch of screw hole: ca. 30 mm
• Screw connection #4-40 UNC
• Cable diameter: ca. 5.0 mm
• Housing material: PC + ABS
• Colour: black
• Cable length: ca. 30 cm
• DisplayPort cable
• 2 x screw
