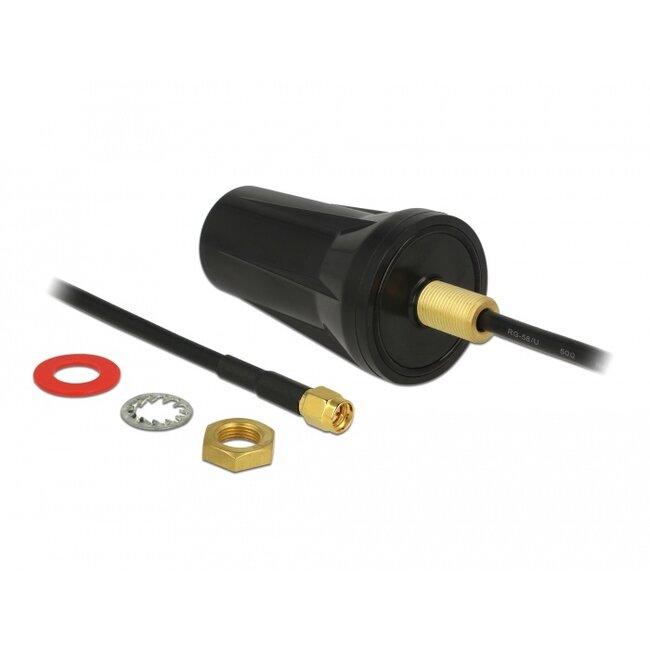

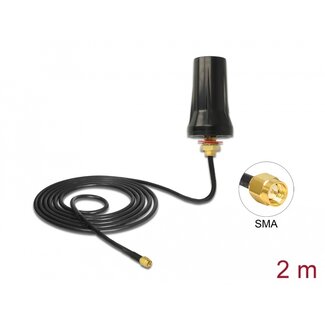

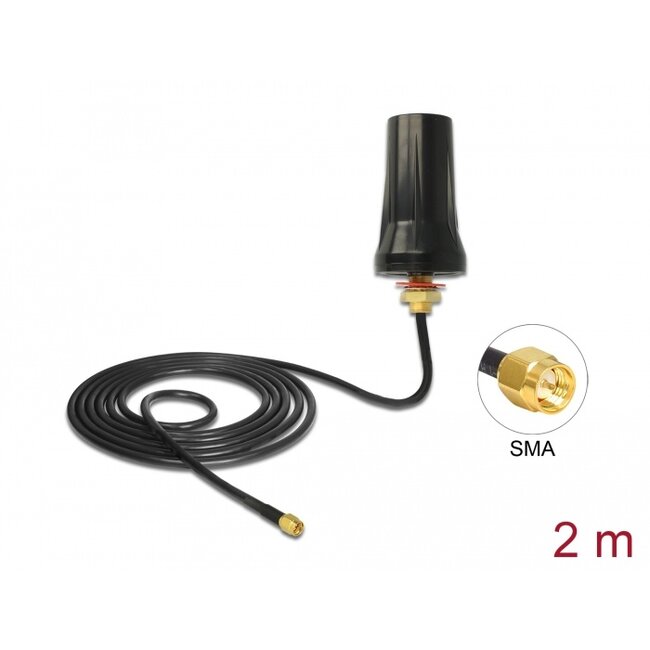

This ISM antenna by Delock can be installed outdoors and indoors and can be used with the 433 MHz band.
Specification• Connector: SMA plug
• Frequency range: 433 MHz +/- 3 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: linear vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67
• Screw mounting 13 mm central hole
• Thread length: 19.5 mm
• Thread: M12
• Colour: black
• Dimension: (L x Ø): ca. 75.5 x 45.2 mm
• Cable category: coaxial
• Cable type: RG-58 U
• Cable attenuation: 0.35 dB @ 400 MHz per meter
• Cable diameter: 4,95 mm
• Cable length incl. connector: ca. 2 m
• Device with a free SMA jack
Package content
• ISM 433 MHz antenna
• Screw nut
