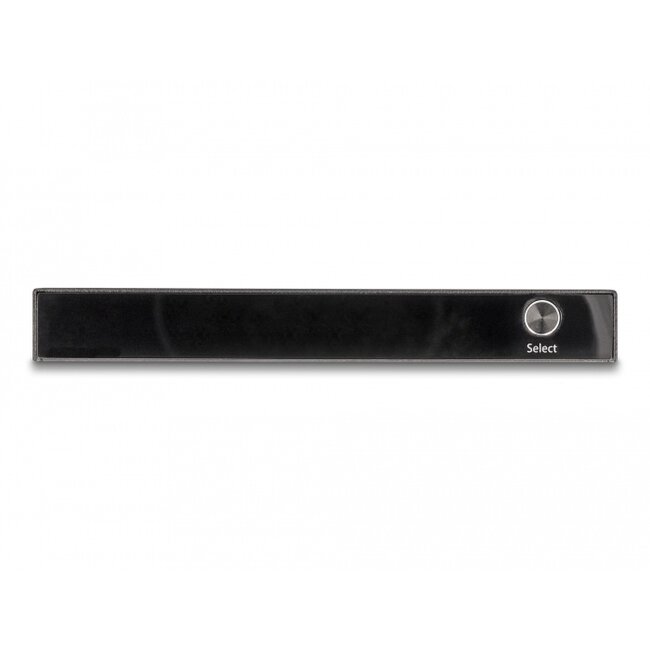

With this HDMI switch by Delock up to three HDMI devices can be used with one HDMI monitor, TV or projector. The button on the device or the remote control can be used to switch between the HDMI devices.
USB powered
The device is powered via a USB port, a suitable USB cable is included. If no free USB-A port is available, an optional external power supply is required.
• Connectors:
Input:
3 x HDMI-A female
1 x USB Type Micro-B female (5 V power supply)
Output:
1 x HDMI-A female
• HDMI port switching: automatic function, via button or via infrared remote control
• LED indicators for active HDMI port
• Ultra High Speed HDMI specification
• Supports HDCP 1.4 and 2.3
• Supports HDR
• Supports CEC
• Supports Game Mode VRR
• Supports Dolby® TrueHD and DTS-HD Master Audio™
• Resolution up to:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Video bandwidth up to 1200 MHz / 12 Gbps, max. 48 Gbps
• Power consumption: max. 5 W
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 112 x 56 x 14 mm
• HDMI cable
• Power source with a free USB Type-A female port
• 2 x AAA battery
Package content
• HDMI switch
• Remote control
• USB power cable, length: ca. 0.75 m
• User manual
