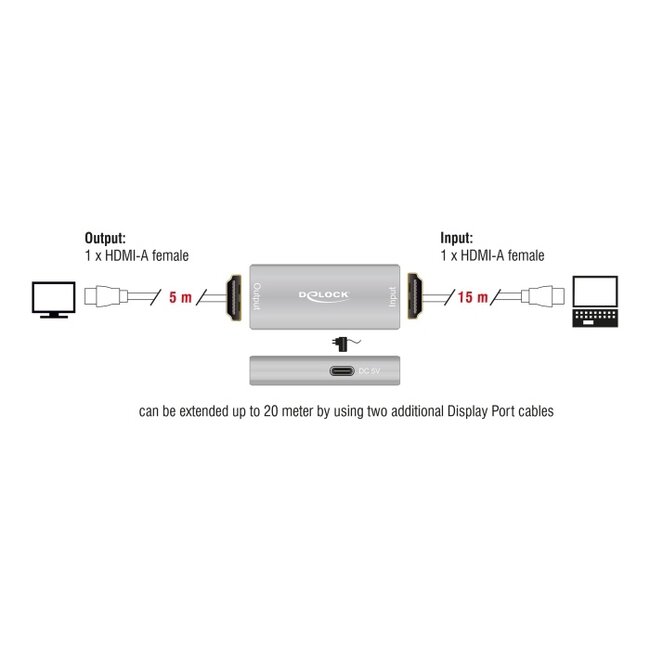

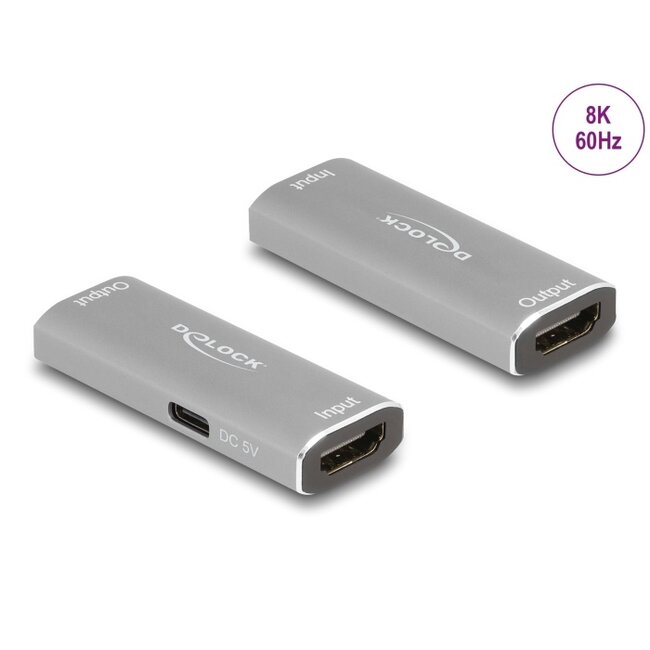

This HDMI repeater by Delock can be used for signal enhancement of an HDMI connection up to 20 m. An up to 15 m long cable can be connected from a PC or laptop to the input port of the repeater, and on the other side an up to 5 m long cable to the output port of the repeater, which is then connected to a display or TV. The repeater supports a resolution of up to 8K Ultra HD (8K @ 60 Hz) and is downwards compatible to Full-HD 1080p.
Specification• Connectors:
Input:
1 x HDMI-A female
1 x USB Type-Câ„¢ female (optional for power supply)
Output:
1 x HDMI-A female
• Ultra High Speed HDMI specification
• Resolution up to:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Supports HDCP 1.4 and 2.3
• Supports HDR
• Transmission of audio and video signals
• No external power supply needed
• Robust metal housing
• Colour: grey
• Dimensions (LxWxH): ca. 58 x 25 x 11 mm
• A free HDMI port on your system and display
• HDMI connection cables
Package content
• HDMI repeater
• User manual
