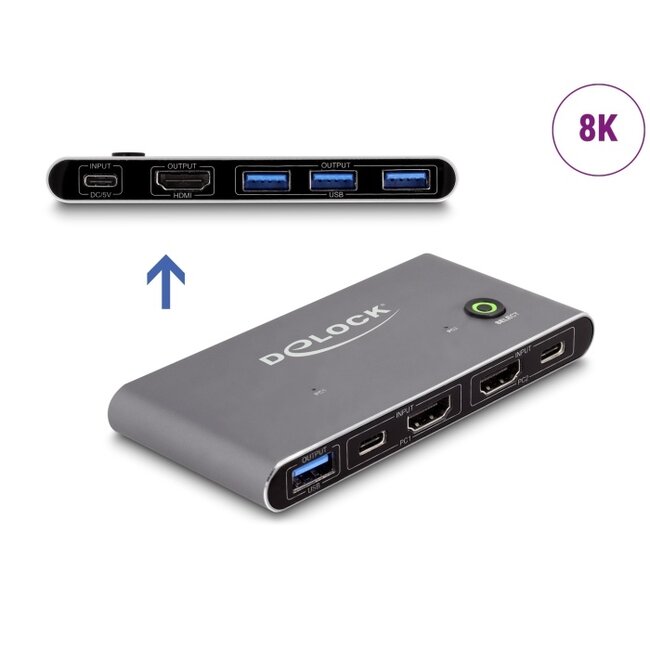

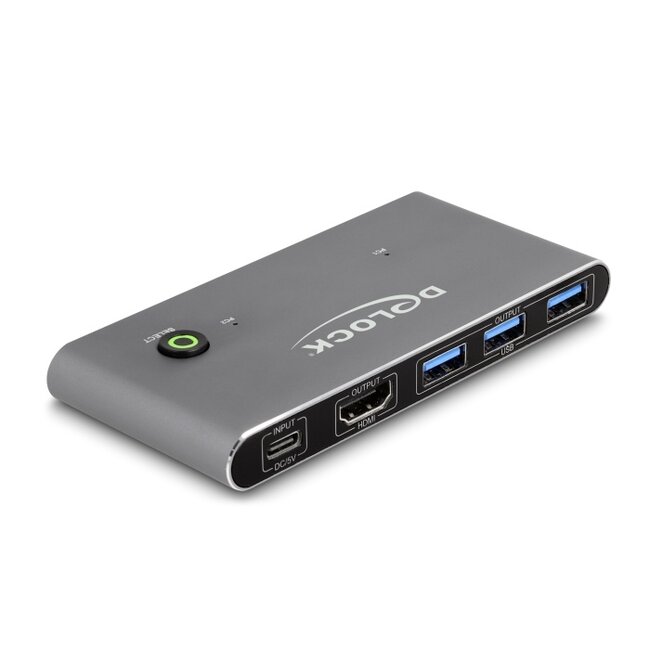

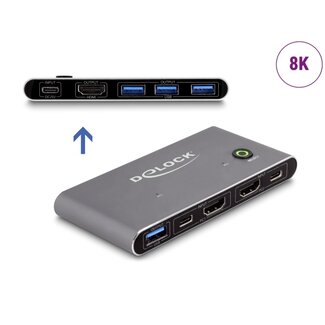

This KVM switch by Delock is a convenient solution for connecting two computers with HDMI output to one HDMI monitor. By using the button you can switch between both computers.
Peripheral devices
Furthermore, four USB 5 Gbps ports for mouse and keyboard or USB storage can be connected.
• Connectors:
Input:
2 x HDMI-A female
2 x USB 5 Gbps USB Type-Câ„¢ female
1 x USB Type-Câ„¢ female (5 V power supply)
Output:
1 x HDMI-A female
4 x USB 5 Gbps Type-A female
• Switch button
• LED indicator for source
• Data transfer rate up to 5 Gbps
• Resolution:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Metal housing
• Colour: anthracite
• Dimensions (LxWxH): ca. 115 x 54 x 12 mm
• OS independent, no driver installation necessary
• PC with HDMI female + USB Type-A female
• Monitor or TV with HDMI connector
• HDMI cable
• Power source with a free USB Type-A female port
Package content
• KVM switch with USB

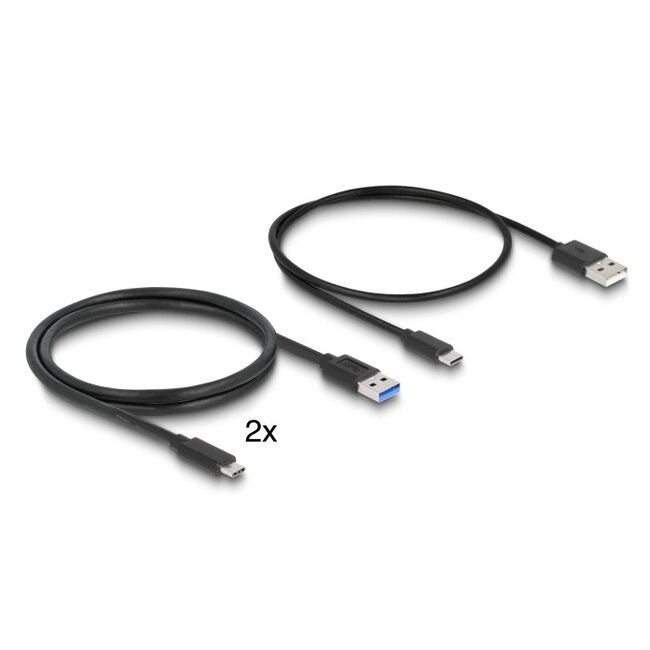

• 2 x cable USB 5 Gbps Type-A male to USB 5 Gbps USB-C™ male, length ca. 100 cm
• Cable USB-C™ male to USB Type-A male, length ca. 100 cm (power supply)
• User manual
