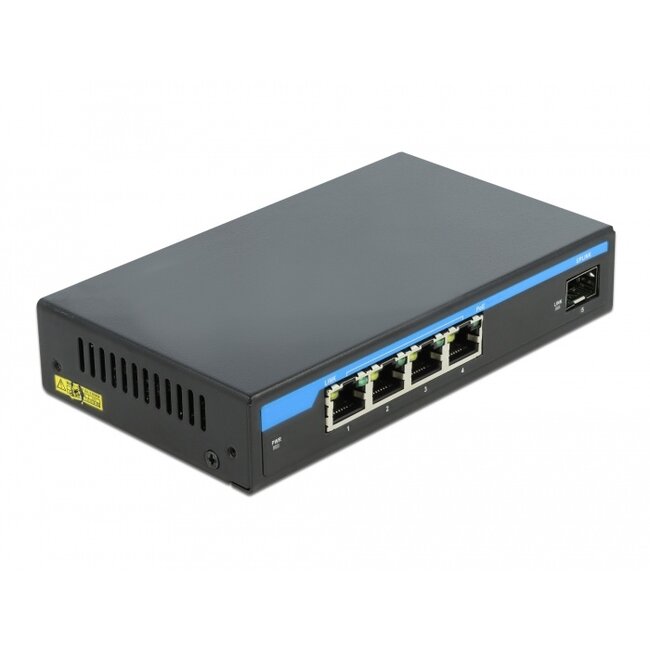

This Gigabit Ethernet Switch by Delock can be used to connect different network components. The four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, so they can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.
The additional SFP slot allows to expand the network with a fiber optic connection.
• Connectors:
4 x RJ45 jack PoE
1 x SFP slot for 1 Gbps SFP module
1 x DC 5.5 x 2.1 mm female
• Output power: max. 30 W per port, max. 60 W total
• Data transfer rate up to 1 Gbps
• LED indicator for power and PoE
• LED indicator for link and activity
• Supports IEEE 802.3at PoE+
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Metal housing
• Fanless
• Dimensions (LxWxH): ca. 153 x 87 x 29 mm
Power supply specification
• Power supply with IEC C14 connector
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: DC 48.0 V / 1.35 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
• Device with one free RJ45 port
Package content
• PoE switch
• External power supply
• Power cord
• User manual
