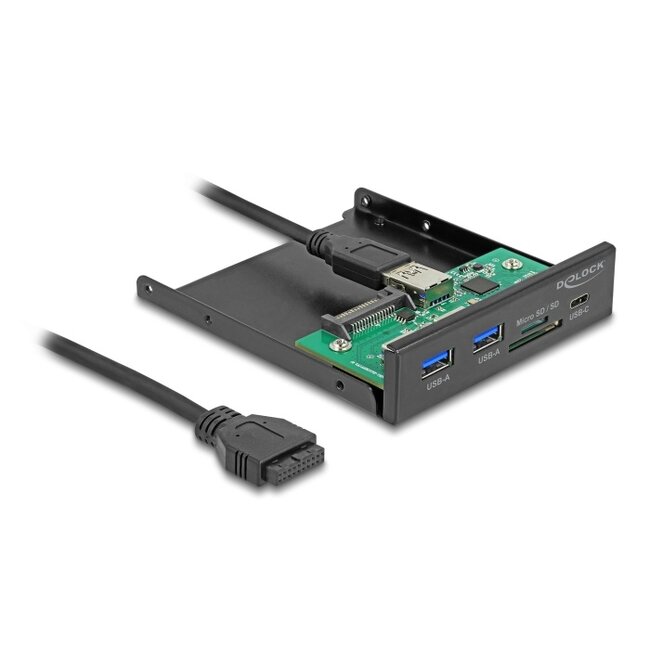

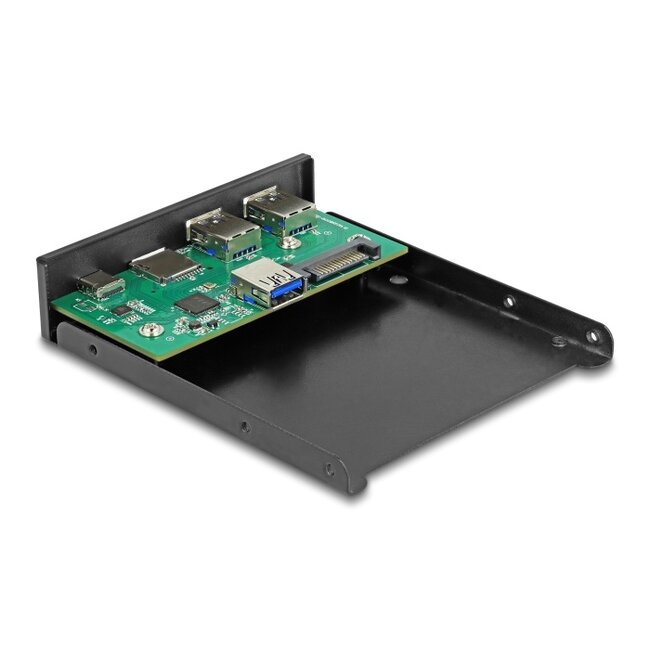

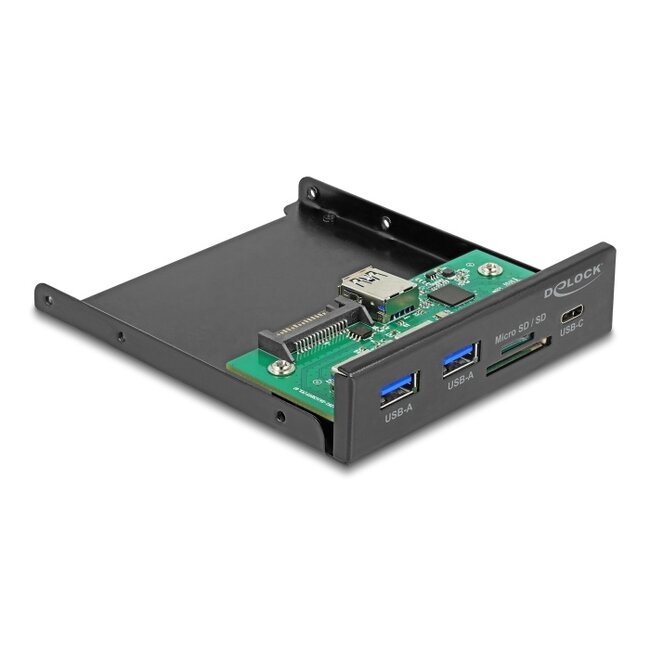

This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB 5 Gbps Type-A and one USB 5 Gbps Type-C port. It will be connected to the motherboard internally via a pin header male port.
Integrated Card Reader
In addition, the hub with integrated card reader expands the PC by an SD and a Micro SD slot.
• Connectors:
external:
1 x USB 5 Gbps USB Type-C™ female
2 x USB 5 Gbps Type-A female
1 x SD slot
1 x Micro SD slot
internal:
1 x 19 pin USB pin header female port on the cable
1 x SATA 15 pin power connector
• Chipset: VIA VL817, Genesys Logic GL3224
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• The Card Reader supports following memory cards:
1. Slot Secure Digital
SD, SD3.0 UHS-I, SD High Capacity (SDHC), SD Ultra, SDHC Ultra, SDXC, MMC-I, MMC-II, MMC 4.0, Mini SD, Mini SDHC, MMCmobile, RS-MMC, RS-MMC 4.0
2. Slot Micro Secure Digital
MicroSD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
• Cable data:
1 x 19 pin USB pin header female cable, length ca. 54 cm (without connectors)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free 3.5″ bay
• Motherboard with a free 19 pin USB 5 Gbps pin header male
• Power supply with SATA 15 pin receptacle

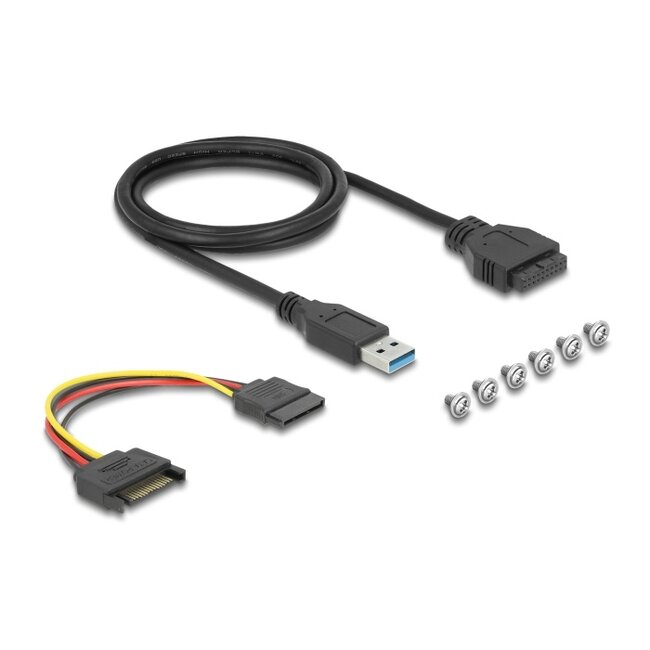

Package content
• 3.5″ front panel
• USB pin header female cable
• Screws
• User manual
