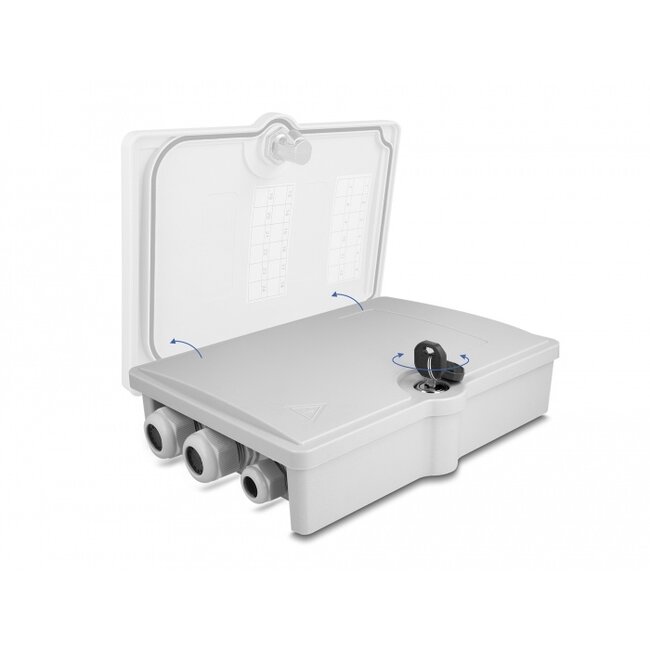

This lockable distribution box by Delock can be used for wall mounting and serves as a protective housing for optical cables and couplings. The distribution box can accommodate up to six SC Duplex or LC Quad couplings.
With splice cassette

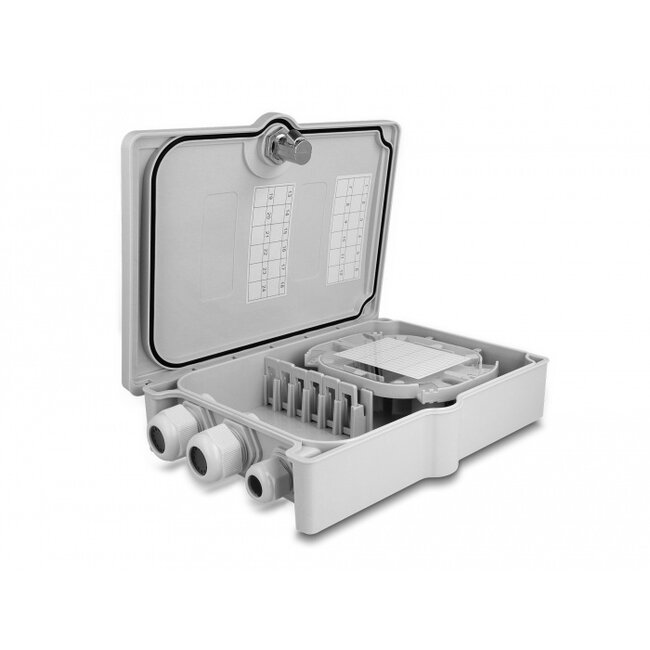

The integrated splice tray enables clean routing of the individual fibers for optimal transmission of lightwave signals. In addition, the cassette is perfect for mechanical splicing and fusion splicing.
With cable glands - IP55 dust and waterproof
The distribution box has two PG21 cable glands with multiple sealing inserts and one PG13.5 cable gland with one sealing insert. The seals provide increased protection against dirt and moisture for the connection of fiber optic cables indoor and outdoor.
• Fiber optic distribution box for FTTH applications
• 6 slots for SC Duplex or LC Quad couplings
• Wall mounting
• Lockable
• With splice cassette
• 1 x PG13.5 cable gland with one sealing insert for 6 - 12 mm cable diameter
• 2 x PG21 cable gland with 12 multiple sealing inserts for 2 mm cable diameter
• Suitable for indoor and outdoor use
• Protection class: IP55
• Environmental temperature: -40 °C ~ 75 °C
• Housing colour: grey
• Housing material: ABS
• Dimensions (LxWxH): ca. 269 x 193 x 60 mm

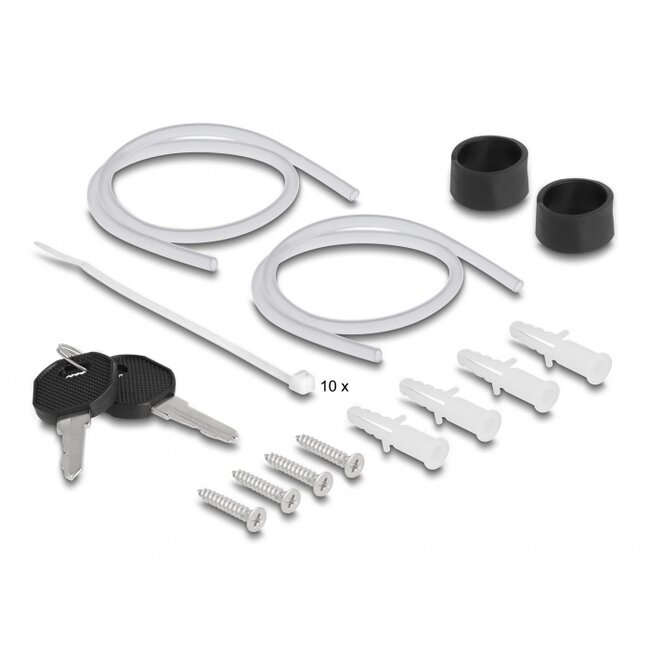

• Fiber optic distribution box
• 2 x keys
• Mounting material
• 2 x plastic tube
