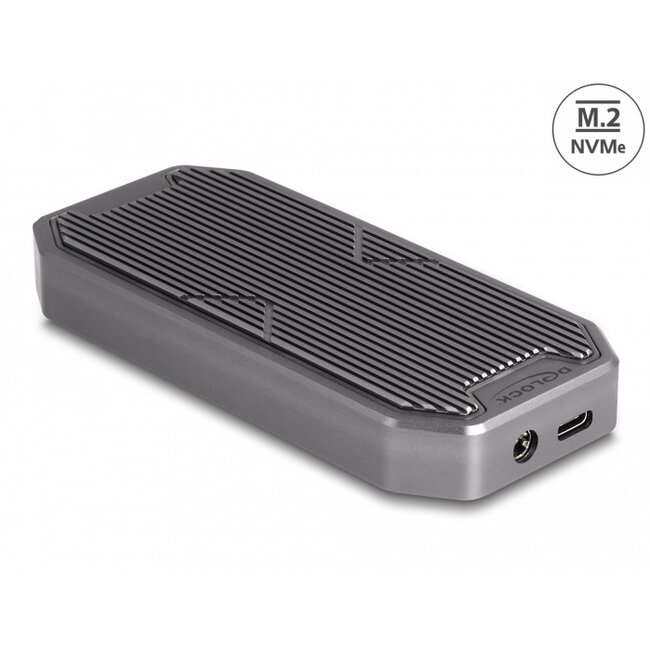

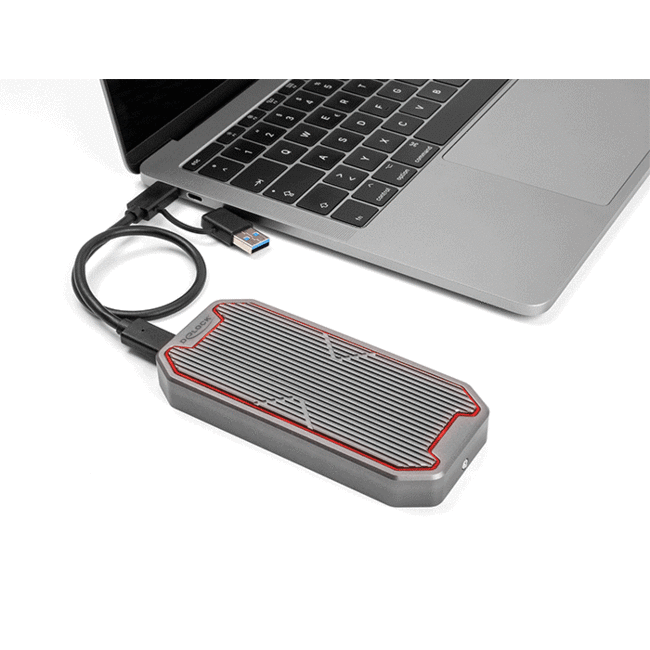

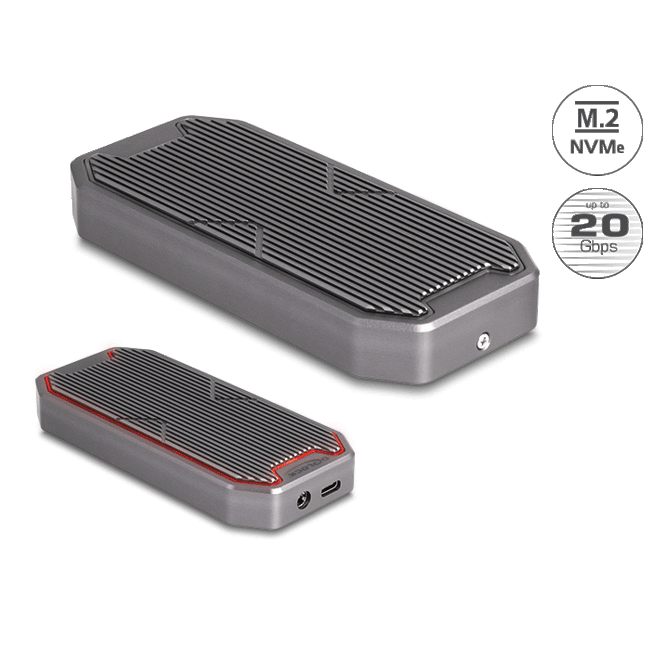

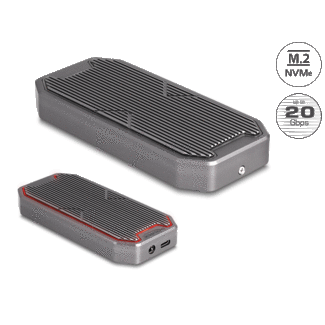

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260 and 2242 format, it can be connected via USB to the PC or laptop. The robust metal housing with cooling fins ensures an optimum temperature of the memory.
SuperSpeed USB 20 Gbps
The enclosure allows a data transfer rate of 20 Gbps on the USB-C™ port.
Gaming style
The elegant design of the Delock enclosure is a perfect match for a gaming PC and the colour gradient RGB LED lighting on the top is a real eye-catcher.
Additional power connector
A power supply can also be connected to the DC jack if an M.2 SSD with particularly high power requirement is installed and the power supply via the USB port is not sufficient.
Note
There is no support for SATA M.2 SSD.
• Connectors:
external:
1 x SuperSpeed USB 20 Gbps (USB 3.2 Gen 2x2) USB Type-C™ female
1 x 12 V DC 5.5 x 2.5 mm jack (optional for power supply)
internal:
1 x 67 pin M.2 key M slot
• Chipset: Asmedia ASM2364
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based
on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports NVM Express (NVMe)
• Data transfer rate up to 20 Gbps
• RGB LED with automatically colour gradient
• LED indicator for access
• Metal housing
• Dimensions (LxWxH): ca. 126 x 57 x 16 mm
• Hot Plug, Plug & Play
• Android 11.0 or above
• Chrome OS 91.0 or above
• Linux Kernel 5.11 or above
• Mac OS 11.6 or above
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• PlayStation®5
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
or
• A free USB Type-A port

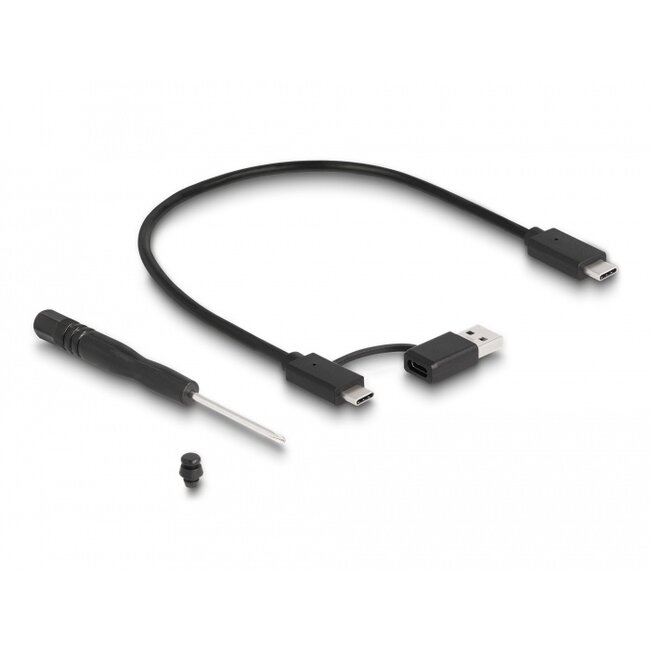

Package content
• External enclosure M.2
• Cable USB-C™ male to USB-C™ male (with adapter to USB Type-A male), length
ca. 30 cm
• Screwdriver
• 2 x rubber nipple
• User manual
