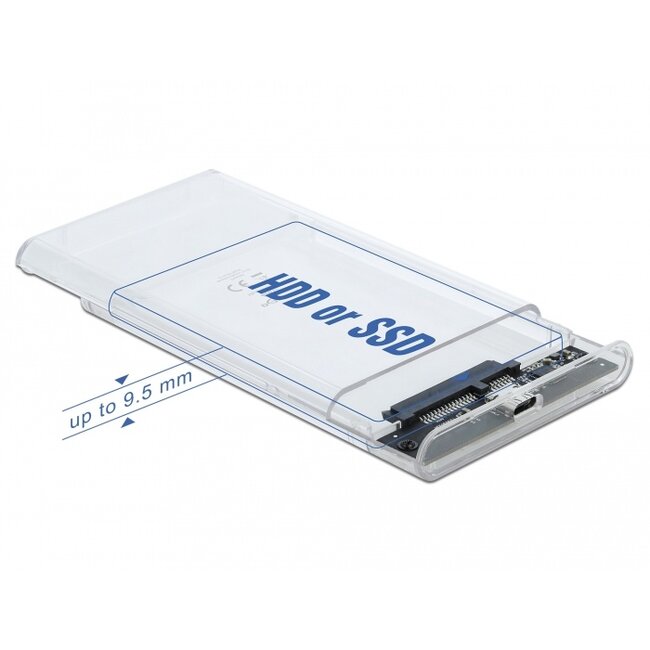

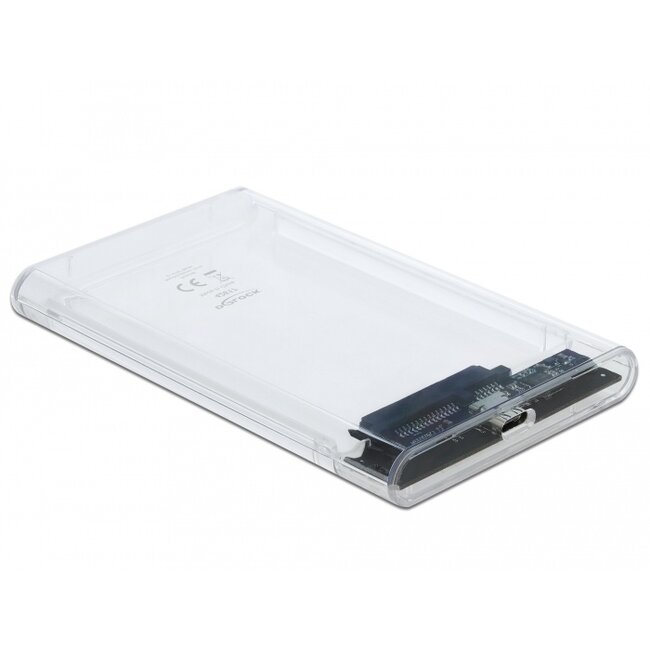

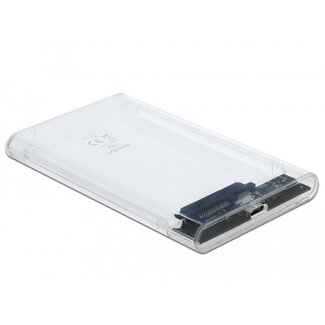

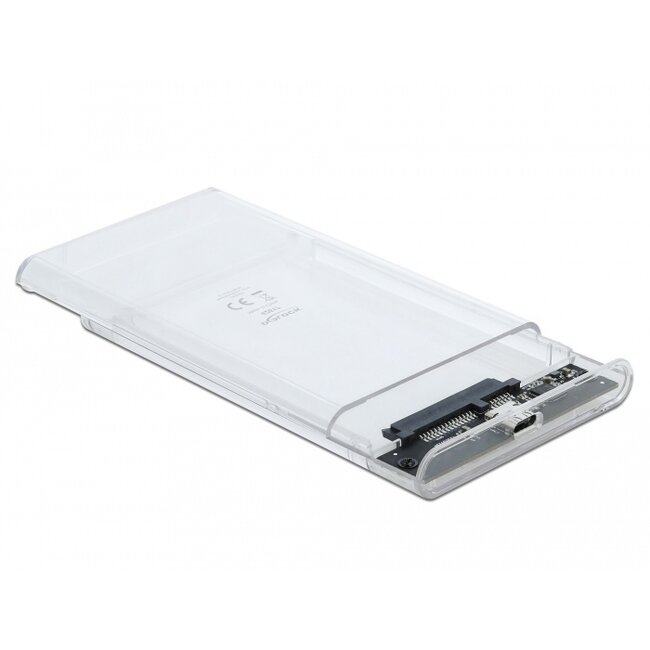

This plastic enclosure by Delock can be used for the installation of a 2.5″ SATA hard drive or SSD. Despite the slim design, hard disks up to a height of 9.5 mm can be installed.
Full speed due to SuperSpeed USB 10 Gbps
Due to the VIA chipset, this hard disk enclosure supports SuperSpeed USB with up to 10 Gbps transfer speed. Thus, the full SATA 6 Gb/s transfer rate of the hard disk can be exploited.
Full connectivity due to USB Type-C™ port
The external enclosure is connected to a PC or laptop via a USB Type-C™ female port installed on the housing. The included USB Type-C™ to USB Type-A cable allows the connection to a free USB Type-A female port. Of course, the enclosure can also be connected via an optional USB Type-C™ cable to a free USB Type-C™ female port or a free Thunderbolt™ port.
• Connectors:
external: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
internal: 1 x SATA 6 Gb/s 22 pin receptacle
• Suitable for 2.5″ SATA HDD / SSD:
HDD height up to 9.5 mm
SATA HDD / SSD up to 6 Gb/s
supports 5 V HDD / SSD
HDD / SSD up to 4 TB
• Chipset: VIA VL716
• Data transfer rate up to 6 Gb/s
• Supports UASP
• LED indicator for power and access
• Transparent plastic housing
• Dimensions (LxWxH): ca. 132 x 85 x 15 mm
• Hot Swap, Plug & Play
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• 2.5″ external enclosure

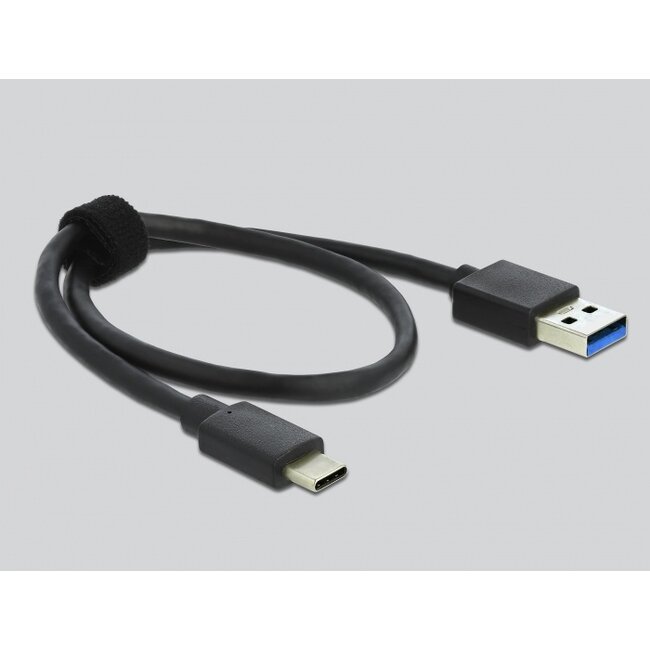

• Cable USB-C™ male to USB Type-A male, length ca. 46 cm
• User manual
