This docking station by Delock can be connected to a MacBook Pro with two adjacent Thunderbolt™ 4 ports. A Thunderbolt™ device can be connected to the Thunderbolt™ 4 port (pass-through). Two built-in USB Type-A ports allow the use of peripherals. Connections for headset and Gigabit network complete the features.
Thunderbolt™ 4 port
All Thunderbolt™ devices, such as docking stations, SSDs or monitors, can still be connected to the Thunderbolt™ 4 pass-through connector. In addition, Thunderbolt™ supports DP Alternate Mode, allowing HDMI, DisplayPort or DVI monitors to be connected with appropriate adapters. This port can also be used to charge the MacBook, since the Power Delivery function (USB PD 3.0) is also supported with up to 100 watts.

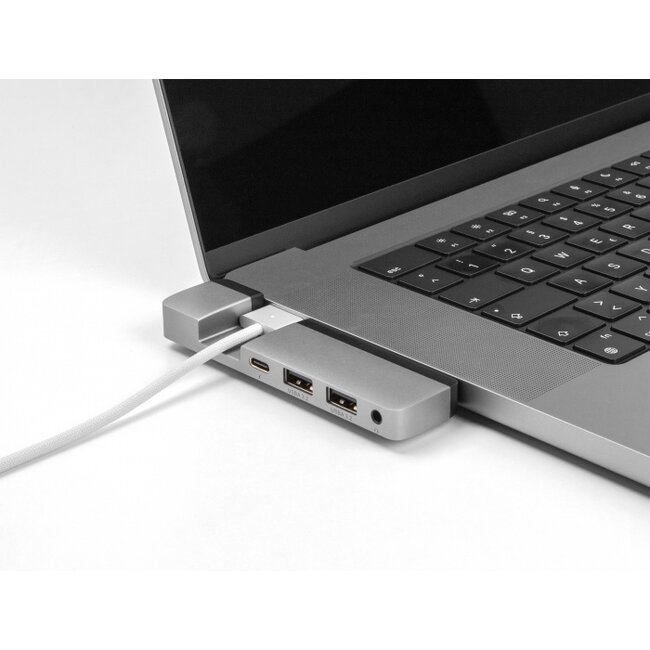

Gap for MagSafe 3
The docking station is specially designed with a gap at the point where the MagSafe charging port is located on the MacBook. This allows the MagSafe power supply to continue to be used, even if the Delock docking station on the MacBook is used.
Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop and used as needed.

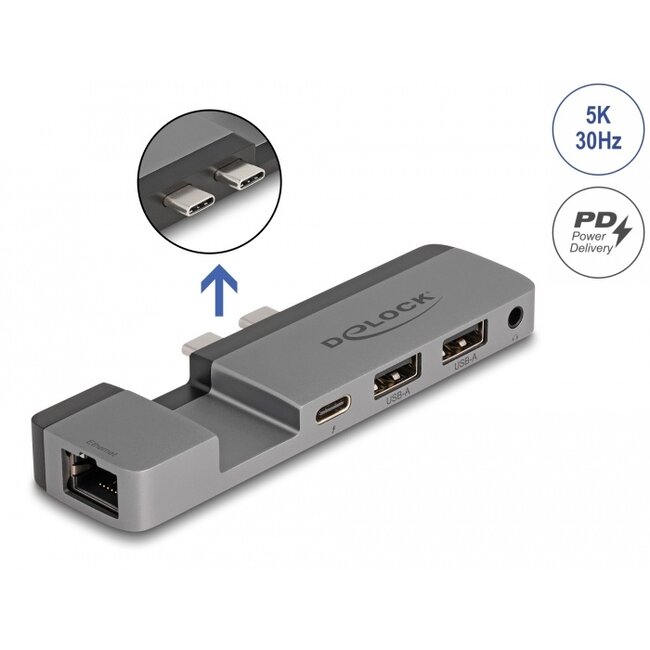

• Connectors:
2 x Thunderbolt™ 4 male
1 x Thunderbolt™ 4 female (pass-through)
2 x USB 5 Gbps Type-A female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x Headset 3.5 mm 4 pin jack
• Resolution up to 5120 x 2880 @ 30 Hz (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Functions: Mirrored or Extended
• USB Power Delivery (PD) 3.0
• Output power for host: max. 100 W
• Metal housing
• Gap for MagSafe 3 charging connector
• Colour: grey / black
• Dimensions (LxWxH): ca. 108 x 29 x 13 mm
• MacBook Pro 14″ (2021), MacBook Pro 16″ (2021), MacBook Air (M2 2022) with two adjacent Thunderbolt™ 4 ports
Package content
• Docking station
• User manual
