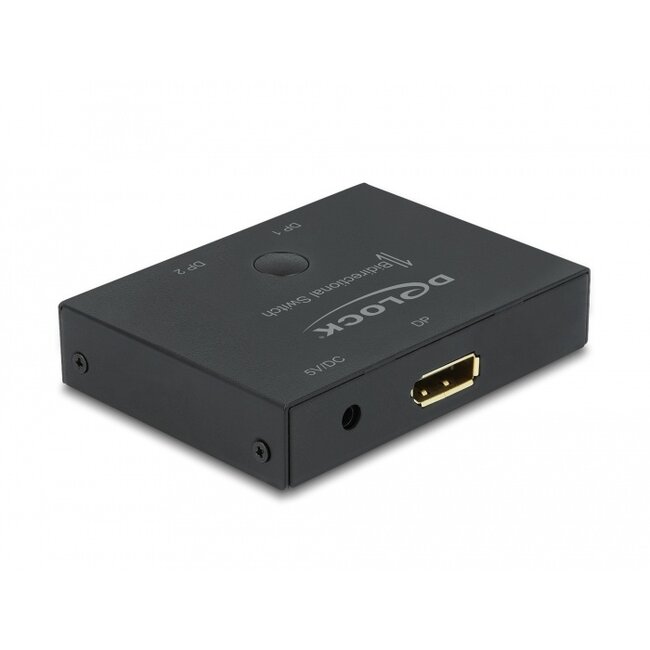

This DisplayPort switch by Delock is a manual bidirectional switch for connecting different devices with DisplayPort port. This switch offers two different applications.
1.
Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.
2.
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible.
Note
Please use short length and high-quality cables, especially for higher resolutions.
• Connectors:

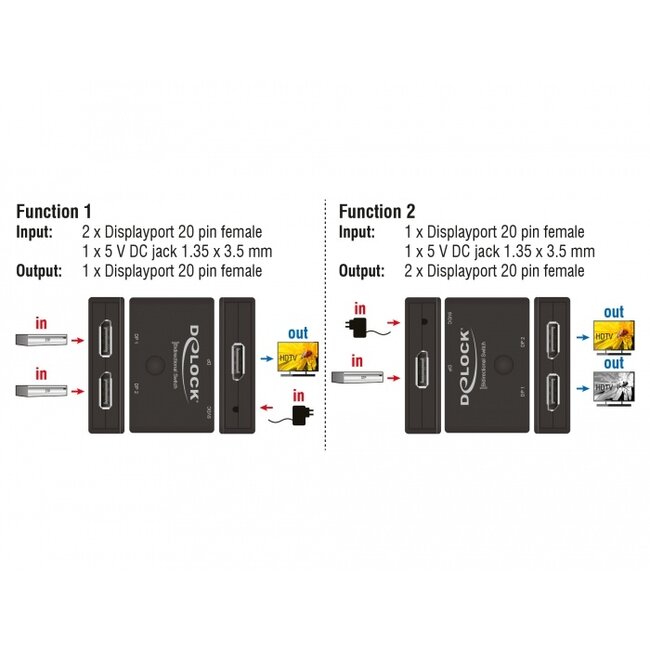

Function 1
Input:
2 x DisplayPort 20 pin female
1 x 5 V DC jack 1.35 x 3.5 mm
Output:
1 x DisplayPort 20 pin female
Function 2
Input:
1 x DisplayPort 20 pin female
1 x 5 V DC jack 1.35 x 3.5 mm
Output:
2 x DisplayPort 20 pin female
• DisplayPort port selection by button
• Resolution up to:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 83 x 63 x 18 mm
• A free DisplayPort female port
• DisplayPort cable
• Power source with a free USB Type-A port
Package content
• Switch bidirectional
• USB power cable, length: ca. 1 m
• User manual
