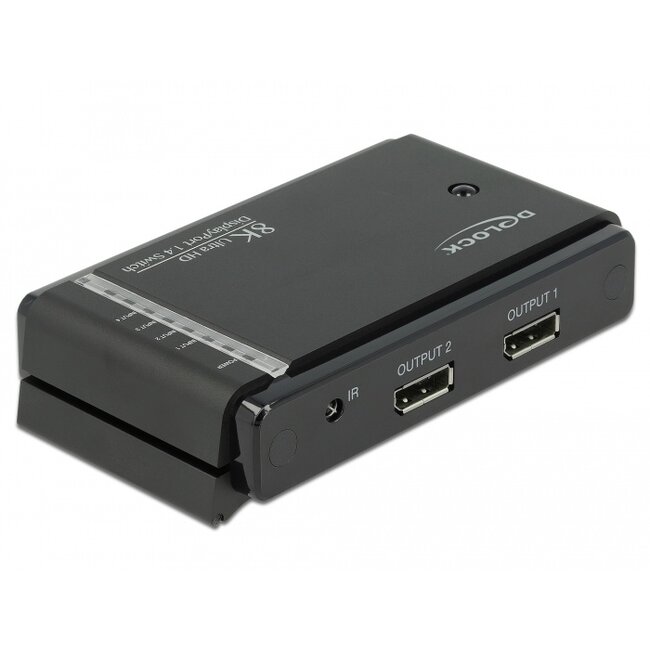

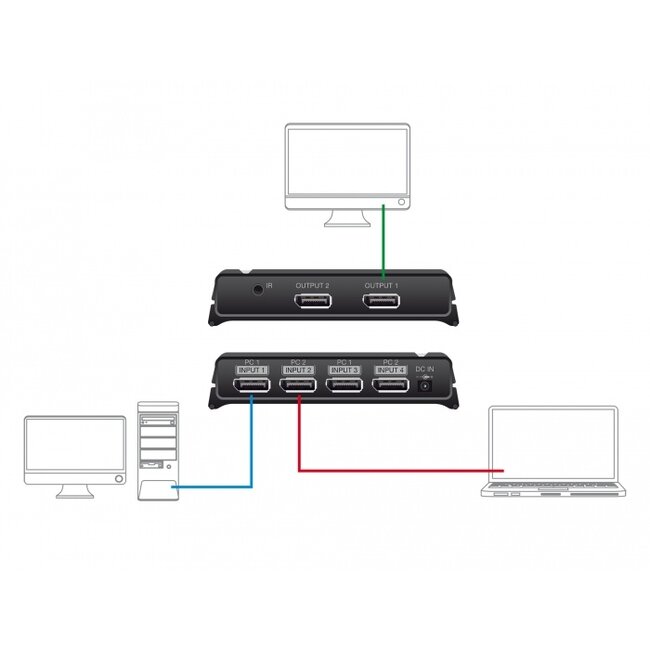

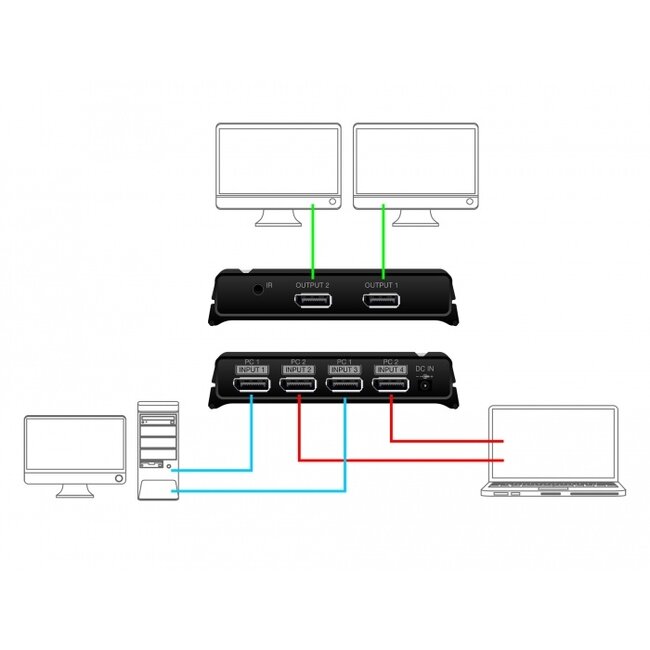

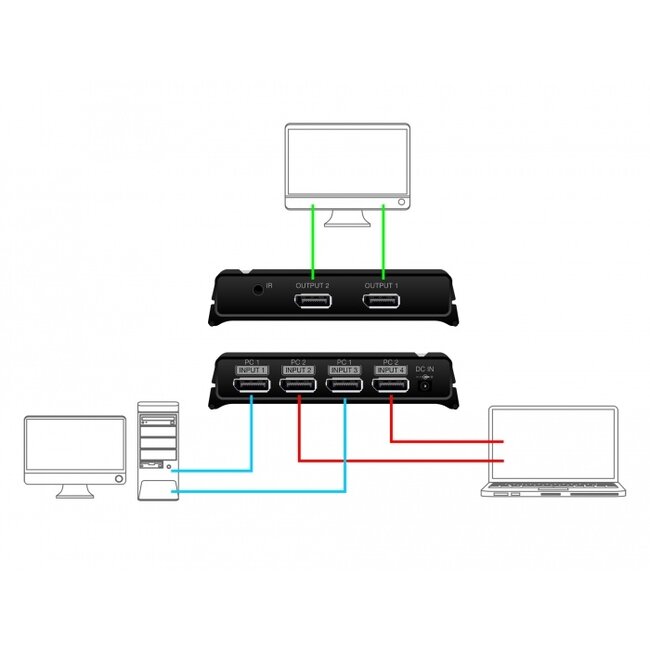

This DisplayPort switch by Delock can be used to connect to a high-resolution 8K monitor with two DisplayPort inputs. The two inputs can be switched between two connected PCs. Alternatively, two 4K monitors can be shared between two connected computers.
The button on the device or the remote control can be used to switch between the DisplayPort devices. The output is dual-mode capable (DP++), so that an HDMI or DVI monitor can be connected with a suitable adapter.

Note
The distance between the source and the DisplayPort switch should not be greater than 2 m at resolutions of 8K @ 30 Hz.
The distance between the DisplayPort switch and the monitor should not be greater than 10 m at a resolution of 8K @ 30 Hz.

• Connectors:
Input:
2 x 2 DisplayPort 20 pin female
1 x DC 5 V power connector
Output:
1 x 2 DisplayPort 20 pin female
• Switching via button or infrared remote control
• LED indicator for active port
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• DisplayPort output supports Dual Mode DP++
• Transmission of audio and video signals
• Resolution up to:
DisplayPort output:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 120 Hz
2560 x 1440 @ 144 Hz
(depending on the system and the connected hardware)
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 130 x 74 x 30 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5.0 V / 1.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 7.0 mm

• A free DisplayPort port on your system and display
• DisplayPort connection cables

Package content

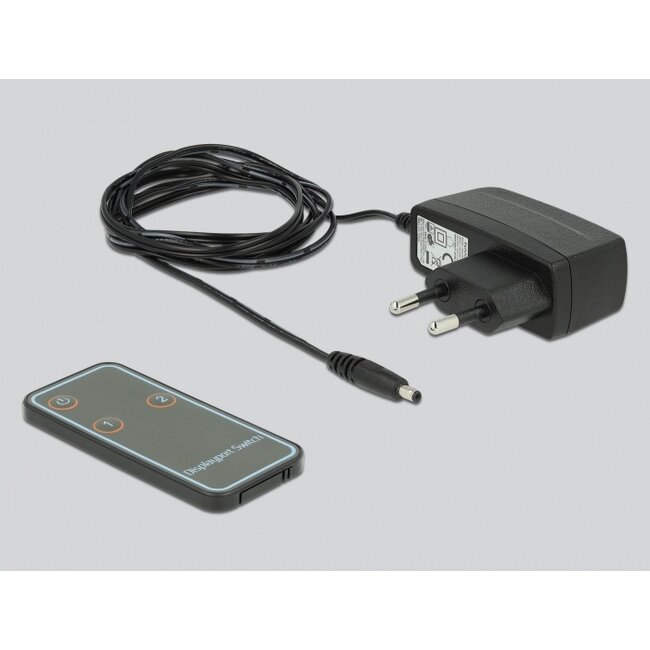

• DisplayPort switch
• Remote control
• External power supply
• User manual
