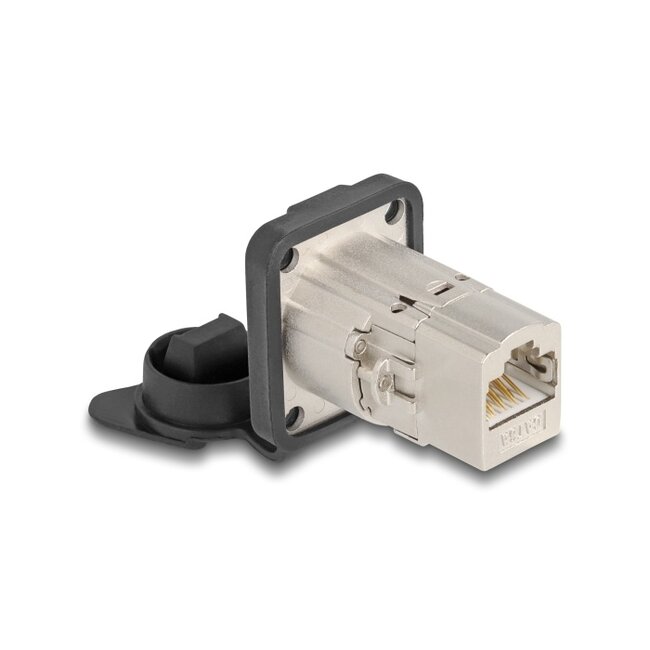

This RJ45 built-in conenctor with D-shaped metal flange by Delock can be used for panel mounting and for installation in a housing.
IP66 dust and waterproof
The module offers increased protection against dirt and moisture when the protective cap is closed.
Special features
• Countersink for cylinder screws
• Connectors:
1 x RJ45 jack
1 x RJ45 jack
• Cat.6A specification
• For D-type ports with 24 x 19 mm
• Panel cut-out (diameter): ca. 24 mm
• Four mounting holes for screw fastening
• Shielded (STP)
• With protection cap
• Protection class: IP66
• Operating temperature: -10 °C ~ 60 °C
• Material: metal / plastic
• Colour: silver
• Dimensions (LxWxH): ca. 37.6 x 32.6 x 27.6 mm
• D-Type module
• 4 x screw
• 4 x washer
