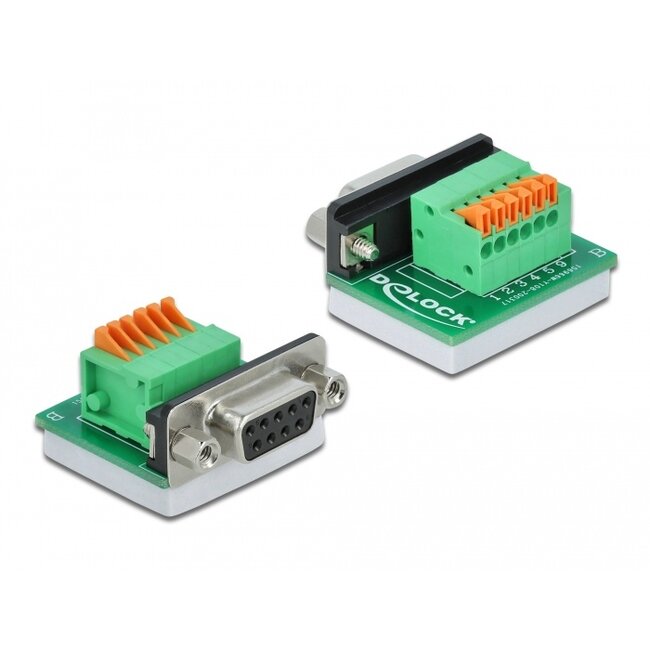

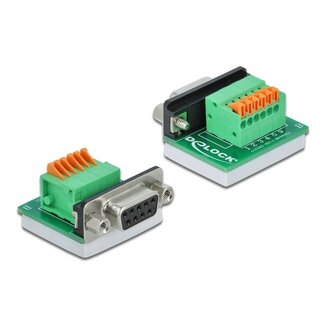

This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling.
Specification• Connectors:
1 x D-Sub9 female with nuts
1 x 6 pin terminal block with push button
• Pitch: 2.54 mm
• Useable for a cable gauge from 24 to 20 AWG
• Operating temperature: -10 °C ~ 70 °C
• Dimensions (LxWxH): ca. 32 x 30 x 22 mm
• A free D-Sub9 male port
Package content
• Adapter
