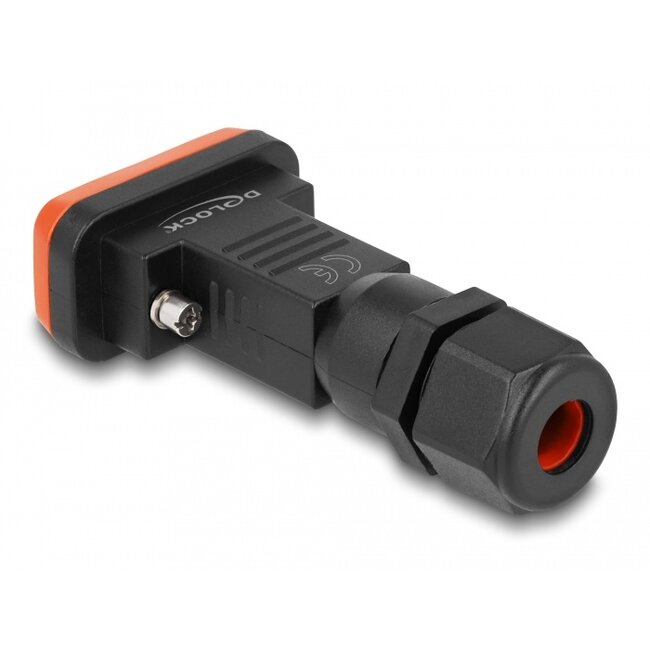

This D-Sub male connector by Delock is suitable for solder assembly and can be used for cable assembly. The IP67 waterproof housing protects the cable wires from moisture and is ideal for use in switch cabinets.
Easy installation

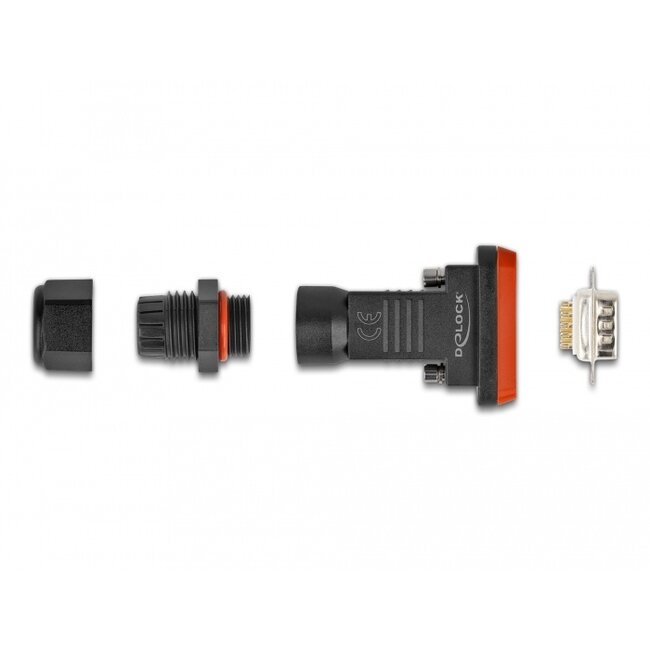

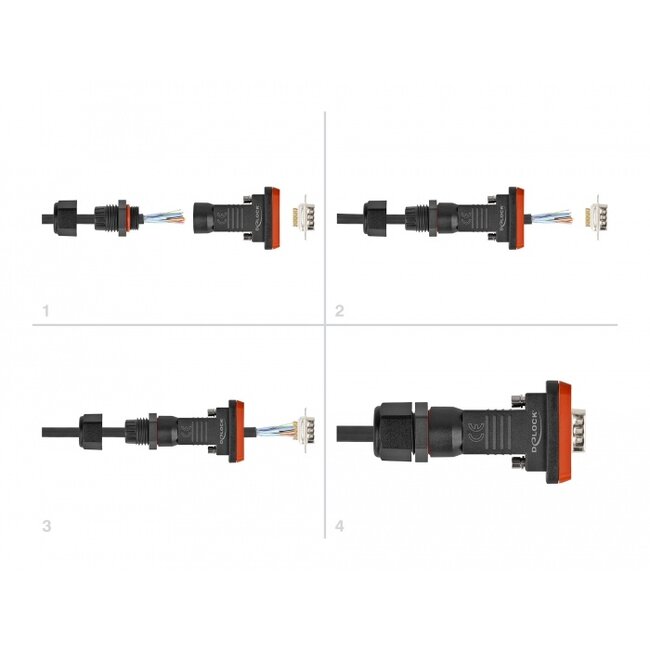

The cable wires can be fed through the housing and connected to the solder contacts of the D-Sub connector. The soldered cable wires are mounted together with the connector to the housing.
• Connectors:
1 x D-Sub 9 pin male (2 rows)
1 x 9 soldering pin
• Protection class: IP67
• Cable diameter: ca. 4 - 9 mm
• Silicone sealing red
• Operating temperature: -45 °C ~ 105 °C
• Colour: black
• Housing material: PA66
• Dimensions (LxWxH): ca. 80 x 41 x 22 mm
• D-Sub 9 pin male
• Housing
