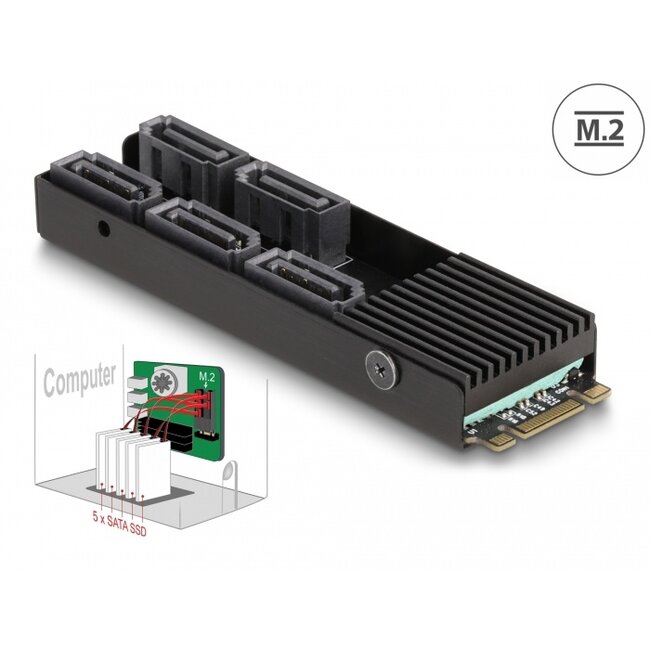

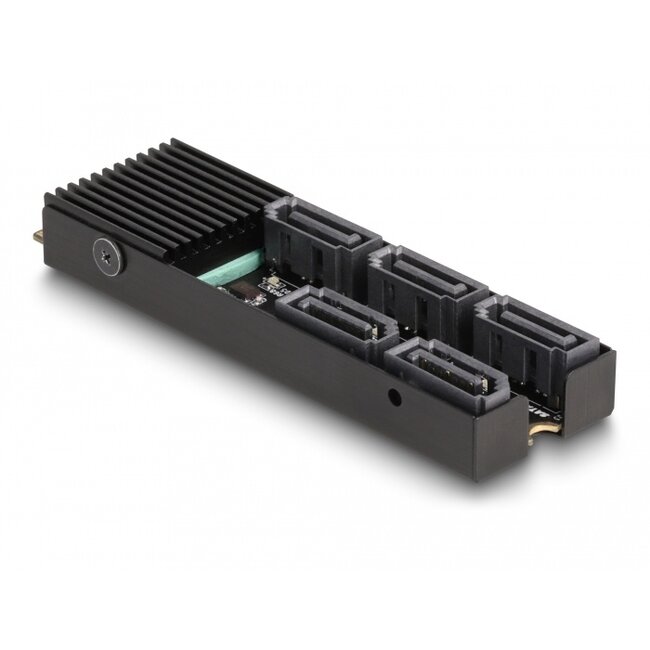

This converter by Delock expands the system by five SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the converter. The heat sink around the M.2 module ensures an optimal temperature during operation.
Specification• Connectors:
1 x 59 pin M.2 key B+M male
5 x SATA 6 Gb/s 7 pin plug
• Chipset: JMicron JMB585
• Interface: PCIe
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B based on PCIe
• Data transfer rate up to 6 Gb/s
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
• Dimensions (LxWxH): ca. 80 x 23 x 10 mm
• Linux Kernel 5.11 or above
• Windows 8.1/8.1-64/10/10-64/11
• A free M.2 key M or key B slot
Package content
• Converter

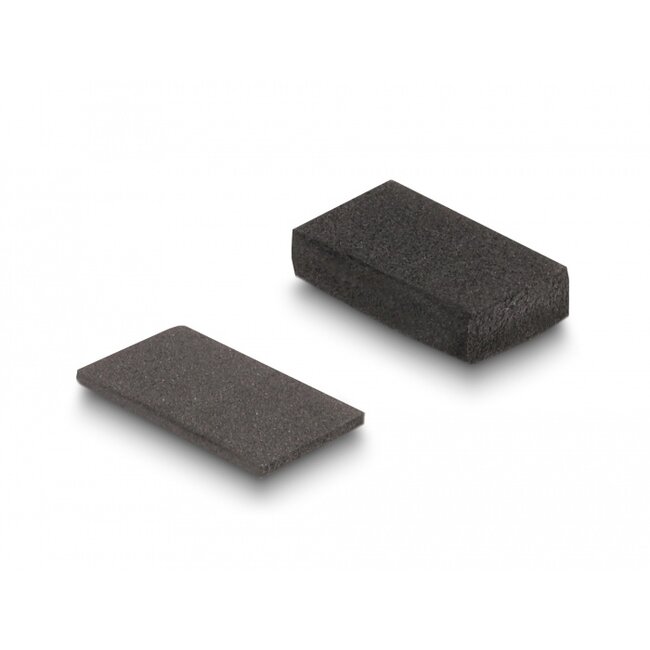

• 2 x foam pad
• User manual
