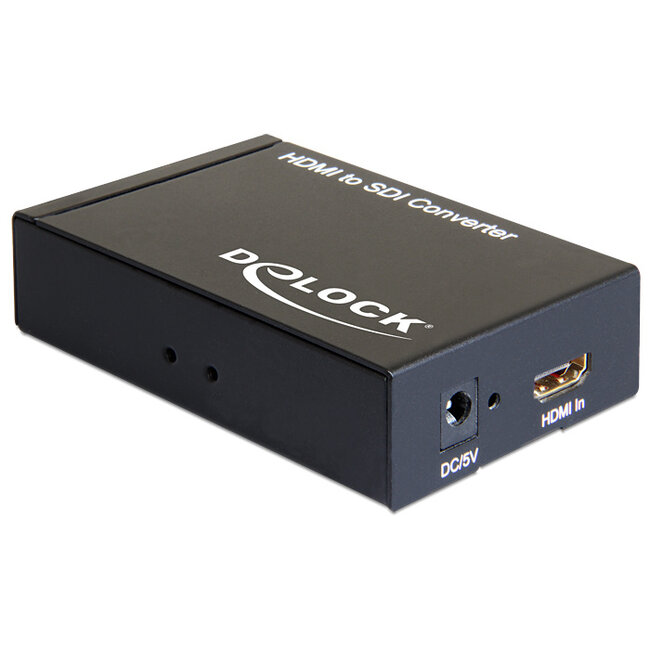

This converter by Delock can be used to convert an HDMI signal to an HD- or 3G-SDI signal. Different video devices can be connected, e.g. a camera with HDMI output to an HD-SDI recorder. The SDI signal is transmitted via a conventional 75 Ohm coaxial cable with BNC connectors.
03/2019 New power supply
• Connectors:
Input:
1 x HDMI-A female

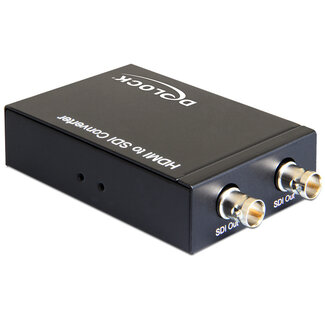

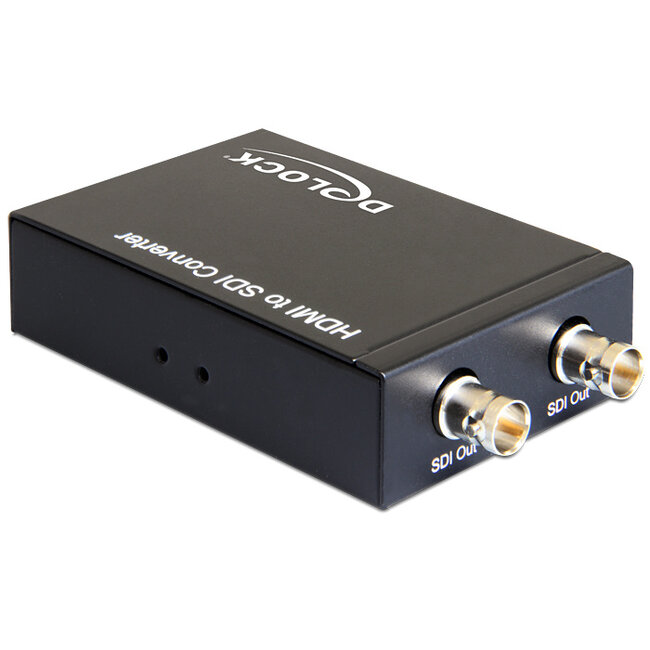

Output:
2 x BNC female (SDI)
• Chipset: GV7600
• Supports 3G-SDI Level A
• Supported resolution:
SD 480i, 525i and 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz
• Data transfer rate up to 3 Gbps
• Supports 8 audio channels with 48 kHz PCM
• Robust metal housing
• Power consumption: max. 4 W
• Dimensions (LxWxH): ca. 100 x 70 x 25 mm

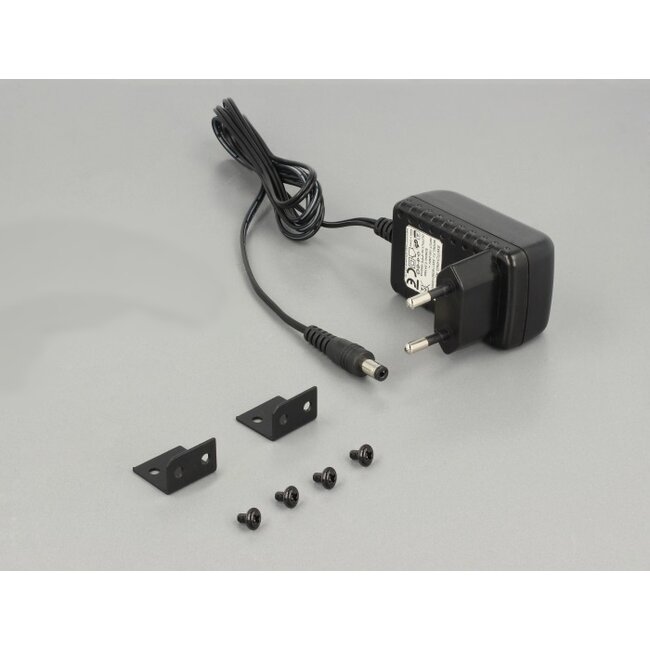

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
• Converter HDMI to 3G-SDI
• Mounting brackets and screws
• Power supply
