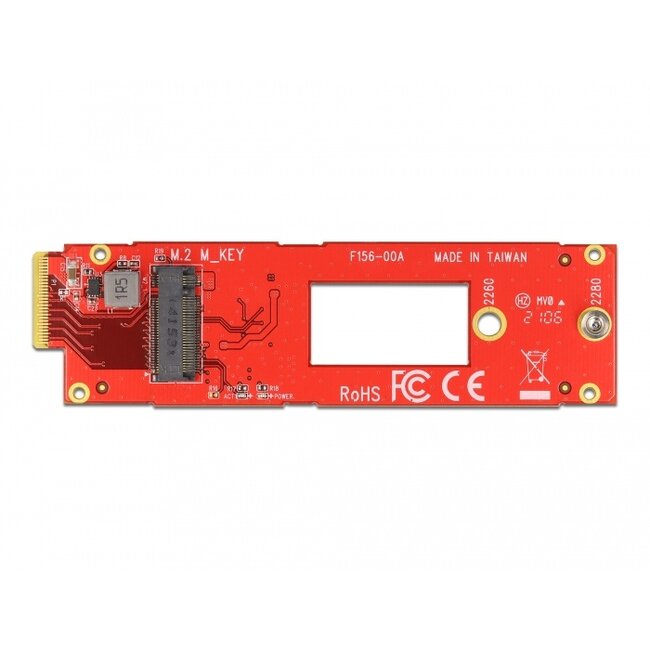

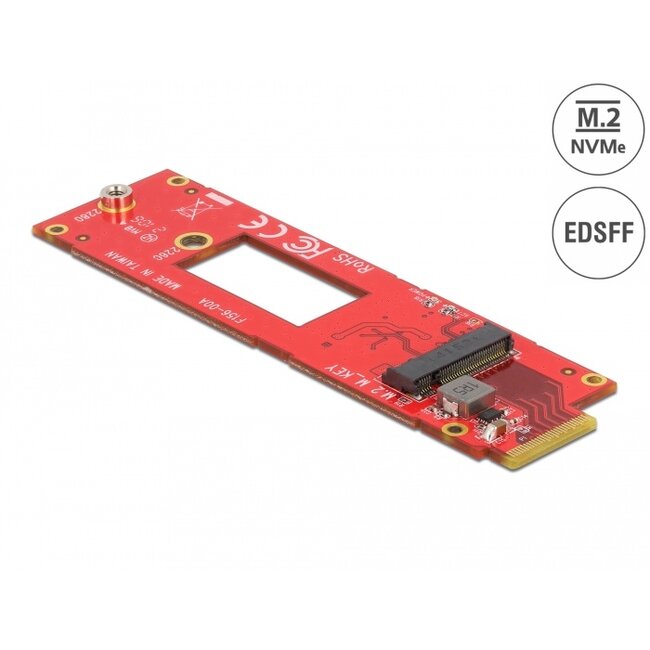

This Delock converter enables the connection of a M.2 SSD in 2280 and 2260 format. The converter can be installed into your system internally through the EDSFF E1.S interface. Thus an M.2 SSD becomes an EDSFF E1.S SSD, which can be used in IoT, data center and server area.
Specification• Connectors:
1 x EDSFF E1.S male >
1 x 67 pin M.2 key M slot
• Interface: PCIe x4 Rev. 4.0
• Supports M.2 modules in format 2280 and 2260 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
• Dimensions (LxWxH): ca. 111 x 31 x 6 mm
• A free EDSFF E1.S interface
Package content
• Converter
• 1 x fixing screw for M.2 module
• User manual
