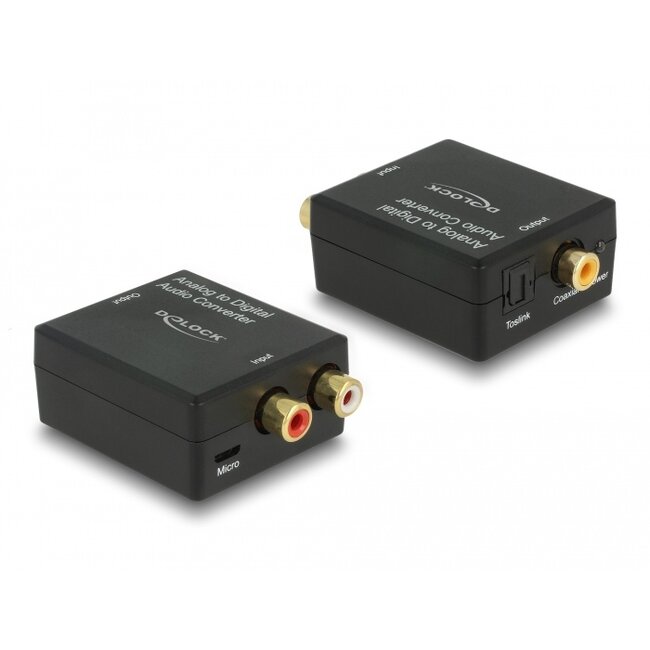

The audio converter by Delock converts an analogue stereo signal into a digital signal. Two cinch cables can be connected to the device to input the analog source signal, e. g. from an MP3 player. At the output, the signal can be transmitted either via optical TOSLINK connection or via S/PDIF coaxial connection.

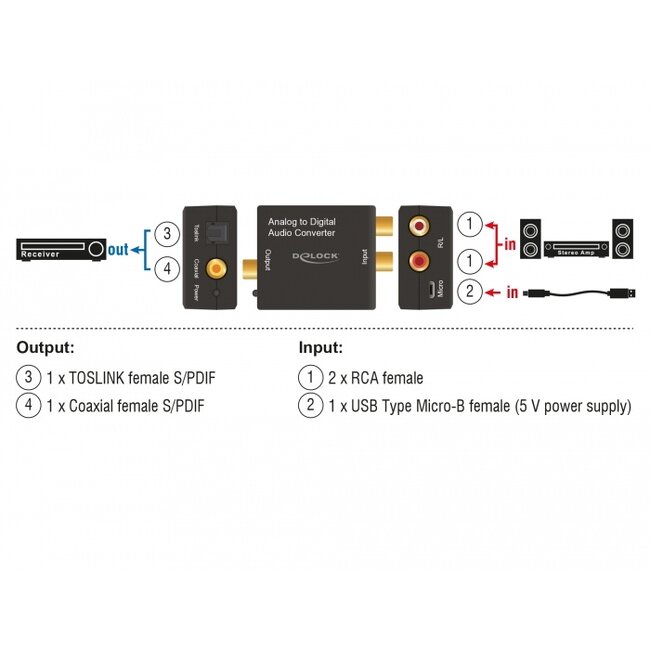

Specification• Connectors:
Input:
2 x RCA female
1 x USB Type Micro-B female (5 V power supply)
Output:
1 x TOSLINK female S/PDIF
1 x Coaxial female S/PDIF
• Chipset: WM8805
• Sample rate: 16 Bit / 96 kHz
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 63 x 44 x 23 mm
• Analogue audio signal
• Power source with a free USB Type-A female port
Package content
• Converter analogue > digital

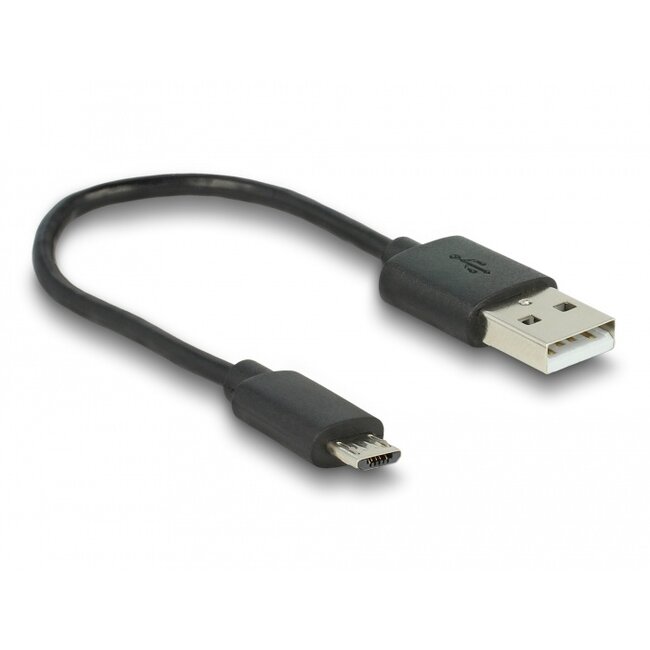

• USB Type-A to Type Micro-B cable, length ca. 30 cm
• User manual
