This mounting clip by Delock is suitable for the mounting on a 35 mm DIN rail.

To be used for different devices
The clip can be screwed to different devices by the 4 mounting holes. This allows you to mount the devices e.g. in a control cabinet onto a DIN rail.

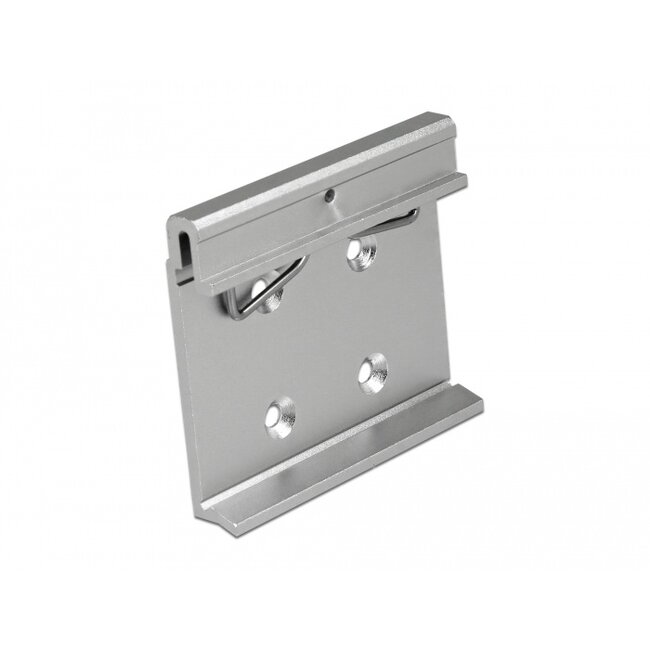

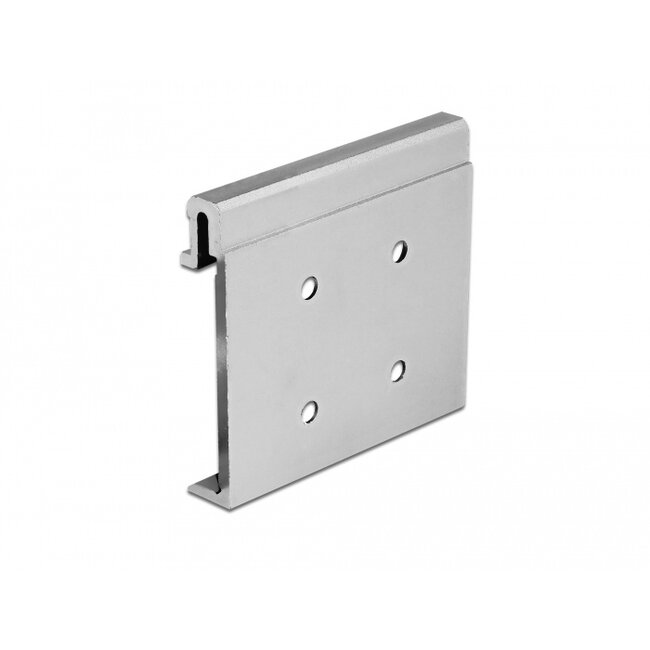

Aluminium Mounting Clip for DIN Rail

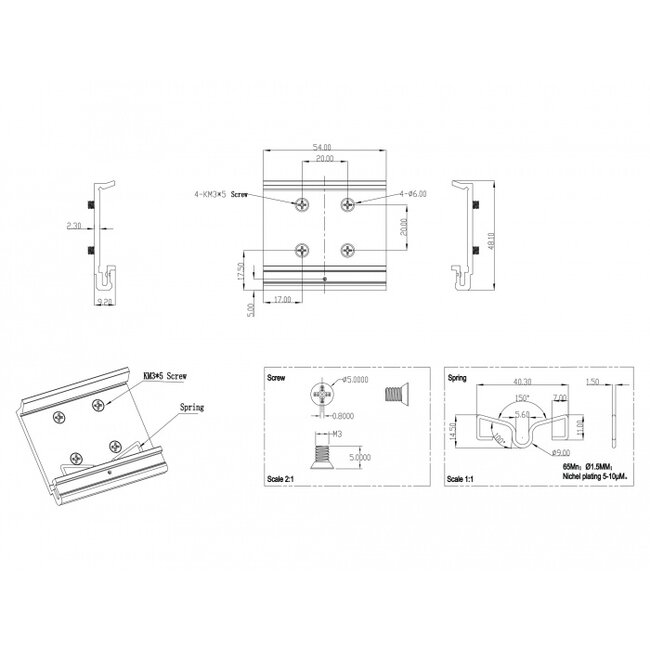

• Environmental temperature: -40 °C ~ 85 °C
• DIN rail mounting: 35 mm
• 4 mounting holes
• Mounting hole diameter: 6 mm
• Pitch of screw hole: ca. 20 mm
• Material: aluminium with spring steel wire
• Dimensions (LxWxH): ca. 48.1 x 54.0 x 9.2 mm

• 35 mm DIN rail

Package content

• 1 x mounting clip
• 4 x screw M3 x 5 mm
