This adapter by Delock emulates a monitor so that the signal source does not switch off the signal or change the resolution, even without a connected monitor. The adapter contains a standard set of EDID/DDC data, but it can also read and save the data of a connected monitor.

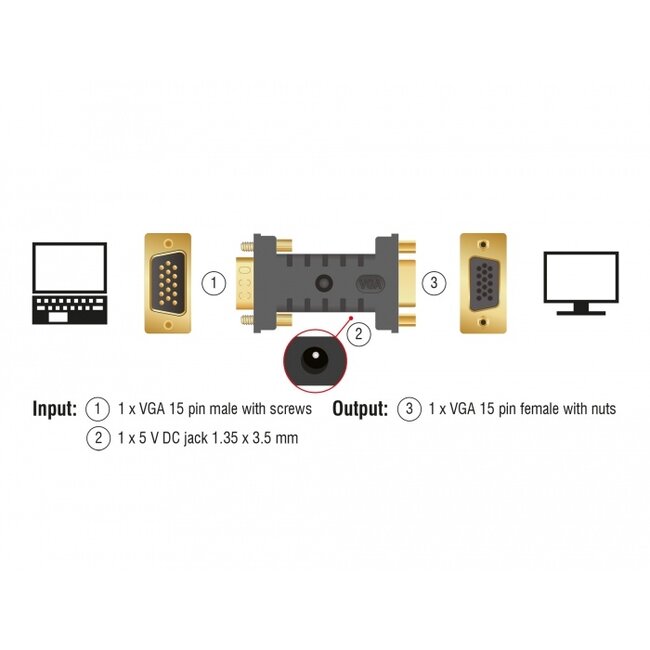

Specification• Connectors:
Input:
1 x VGA 15 pin male with screws >
Output:
1 x VGA 15 pin female with nuts
1 x 5 V DC jack 1.35 x 3.5 mm
• Resolution up to 2560 x 1600 @ 60 Hz (depending on the system and the connected
hardware)
• DC jack for optional power supply
• 1 x LED indicator
• Plastic housing
• Colour: black
• Dimensions incl. connector (LxWxH): ca. 62 x 34 x 15 mm
• EDID emulator
• USB power cable
• User manual
