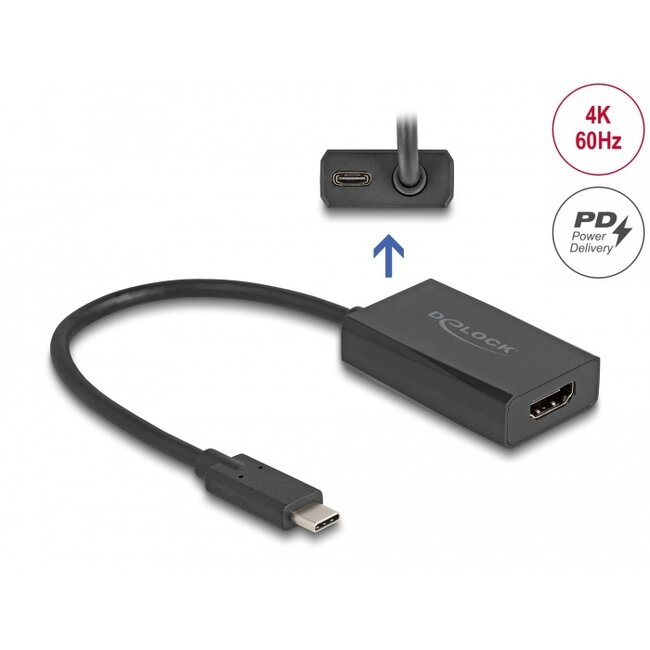

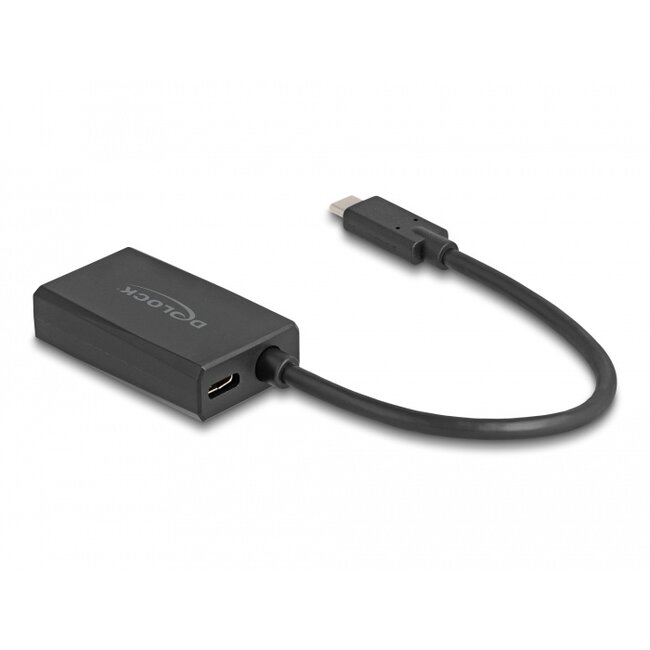

This adapter by Delock enables the connection of a USB Type-C™ (DisplayPort Alternate Mode) monitor to a free HDMI interface of a PC or laptop.
Ideal for portable USB-C™ monitor
The adapter allows the connection of a portable monitor to an HDMI interface and power the monitor at the same time. Therefor it is required to connect a power supply to the adapter, which corresponds to the input power of the monitor.
The adapter has a USB Type-C™ Power Delivery port. If a power supply is connected to this port, the device which is connected to the USB-C™ male port will be charged with up to 100 watts during operation.
• Connectors:
Input:
1 x HDMI female
1 x USB Type-C™ female (power supply)
Output: 1 x USB Type-C™ male
• Chipset: Lontium LT6711A
• DisplayPort 1.2 and High Speed HDMI specification
• Signal direction: HDMI input > USB Type-C™ output
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports HDCP 1.4 and 2.3
• Colour: black
• Cable length without connectors: ca. 15 cm
• A free HDMI connector
• Monitor with a free USB Type-C™ (DP Alt Mode) interface
• Power supply
Package content
• Adapter HDMI to USB Type-C™
• User manual
