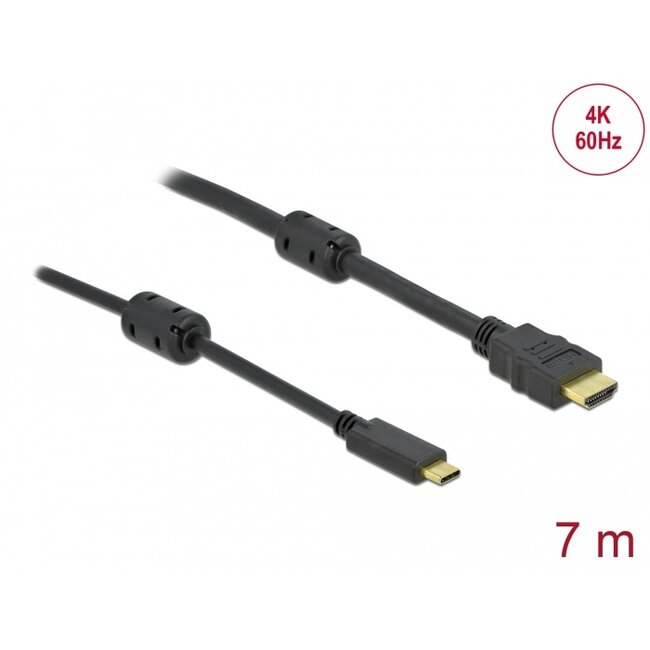

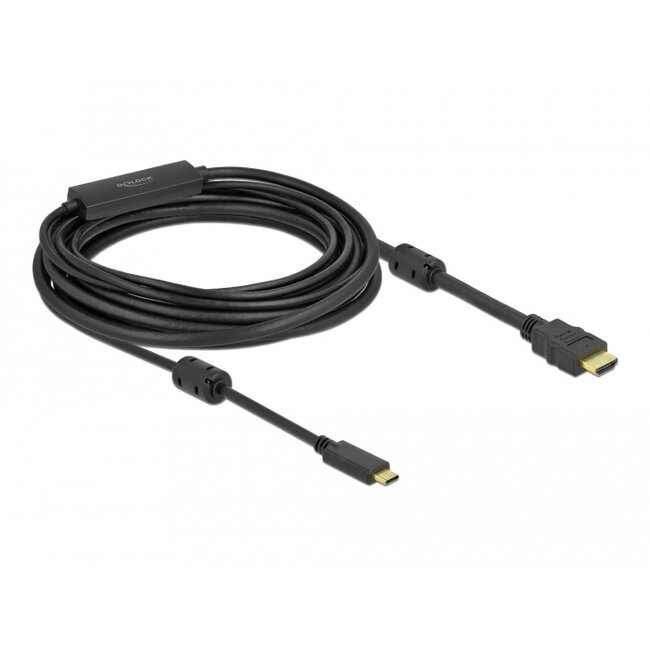

This cable by Delock enables the connection of an HDMI monitor to a PC or laptop with USB-C™ or Thunderbolt™ 3 port, such as a MacBook or a Chromebook. The interface has to support the DisplayPort Alternate Mode.
Specification• Connectors:
1 x USB Type-C™ male >
1 x HDMI-A male
• Signal direction: USB Type-C™ input > HDMI output
• Chipset: Parade PS176
• High Speed HDMI specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 4.7 mm
• Contacts gold-plated
• Transmission of audio and video signals
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports 3D displays (1080p @ 120 Hz)
• Supports HDCP 1.3
• Supports Eyefinity
• 2 x ferrite core
• Colour: black
• Dimensions of signal amplifier (LxWxH): ca. 8.00 x 2.20 x 1.35 cm
• Length incl. connectors: ca. 7 m
• Mac OS 10.12 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• USB-C™ to HDMI cable
