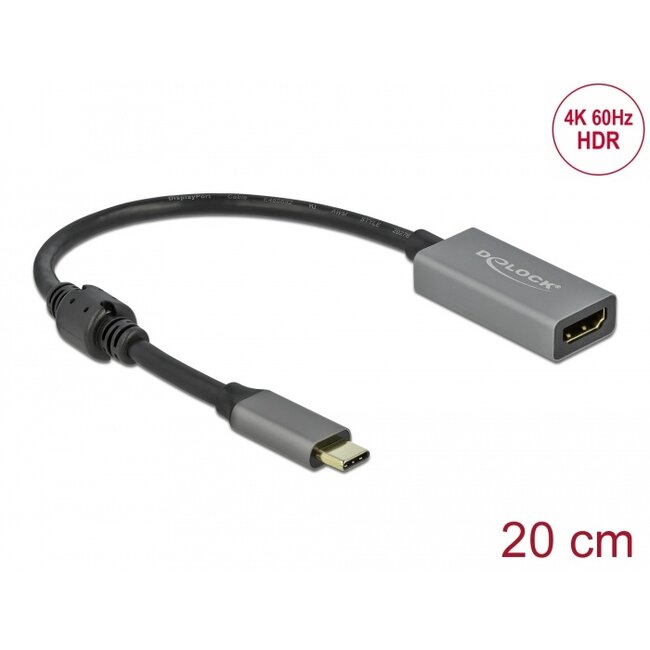

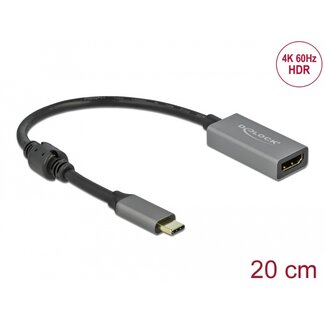

This Delock adapter is suitable for the connection of an HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Thus, the adapter can be connected to different laptops like MacBook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.
Specification• Connectors:
1 x USB Type-C™ male >
1 x HDMI-A female
• Chipset: Parade PS186
• DisplayPort 1.4 and High Speed HDMI specification
• Signal direction: USB Type-C™ input > HDMI output
• Cable gauge:
32 AWG data line
28 AWG power line
• Cable diameter: ca. 5 mm
• Connectors: gold-plated
• Metal housing
• Transmission of audio and video signals
• Data transfer rate up to 18 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDR
• Supports HDCP 1.4 and 2.3
• USB bus powered
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: grey / black
• Android 6.0 or above
• iPad Pro (2018)
• Linux Kernel 4.6.4 or above
• Mac OS 10.15 or above
• Windows 8.1/8.1-64/10/10-64
• Windows 10 Mobile
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• USB-C™ to HDMI adapter
