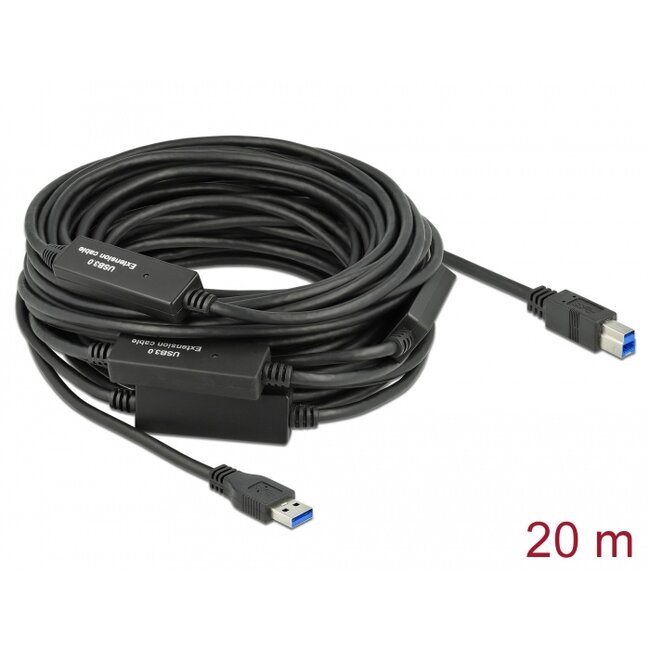

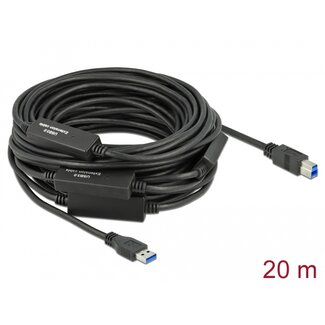

This active USB cable by Delock with integrated signal amplifiers is used to connect devices with USB Type-B female port to a PC or laptop with USB Type-A port.
To ensure reliable data and power transmission, the included power supply unit must be connected to the cable via the DC socket on one of the signal amplifiers.
• Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A male >
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-B male
1 x DC jack
• Chipset: Genesys Logic GL3523
• Status LED
• Cable gauge:
28 AWG data line
24 AWG power line
• Cable diameter: ca. 5.5 mm
• Data transfer rate up to SuperSpeed USB 5 Gbps
• Colour: black
• With 4 signal amplifiers (at intervals of 5 m)
• Dimensions of signal amplifier (LxWxH): ca. 6.7 x 2.2 x 1.2 cm
• Length incl. connectors: ca. 20 m
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.25 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.1 mm
outside: ø ca. 3.5 mm
length: ca. 7.0 mm
• PC or laptop with a free USB Type-A port
Package content
• USB 3.2 Gen 1 cable
• External power supply
