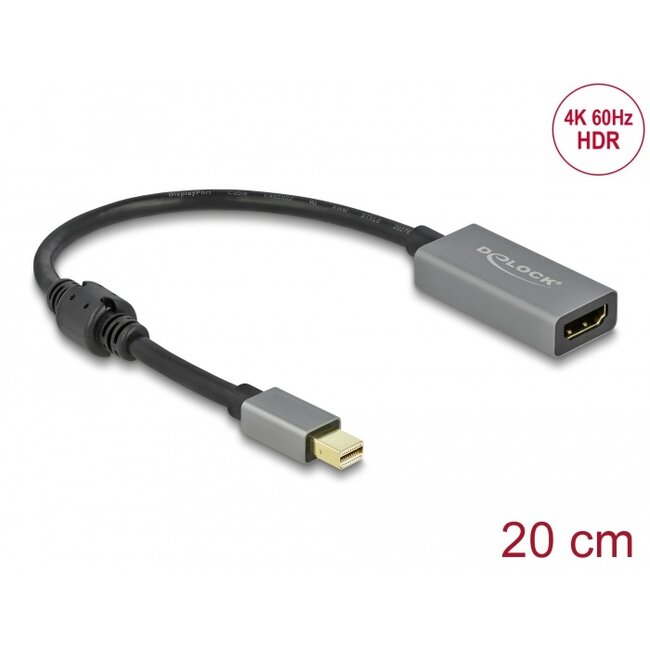

This adapter by Delock enables the connection of an HDMI monitor to the system via a free mini DisplayPort interface. The adapter supports a resolution up to 4K Ultra HD at 60 Hz and is backward compatible to Full-HD 1080p.
Active adapter
The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.
• Connectors:
1 x mini DisplayPort male >
1 x HDMI-A female
• Chipset: Parade PS186
• DisplayPort 1.4 and High Speed HDMI specification
• Active converter, for graphics cards with DP and DP++ output
• Signal direction: mini DisplayPort input > HDMI output
• Cable gauge:
32 AWG data line
28 AWG power line
• Cable diameter: ca. 5 mm
• Connectors: gold-plated
• Metal housing
• Transmission of audio and video signals
• Data transfer rate up to 18 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDR
• Supports HDCP 1.4 and 2.3
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: grey / black
• A free mini DisplayPort female
Package content
• Adapter mini DisplayPort to HDMI
