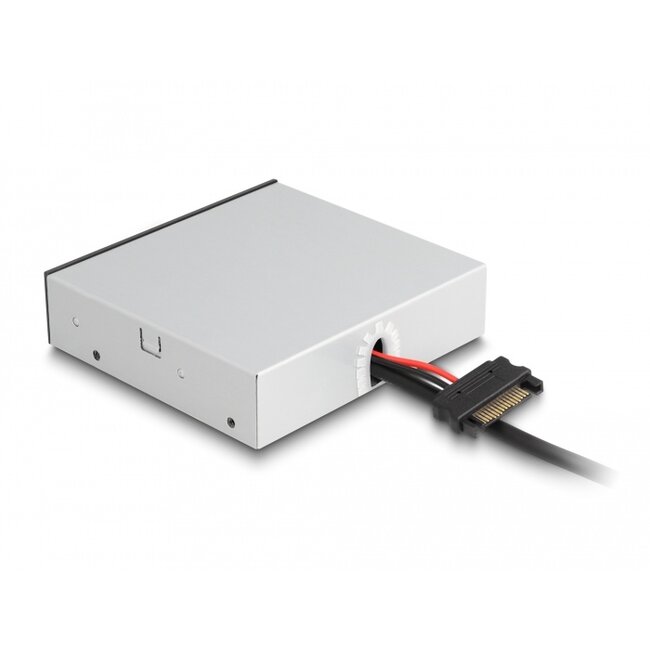

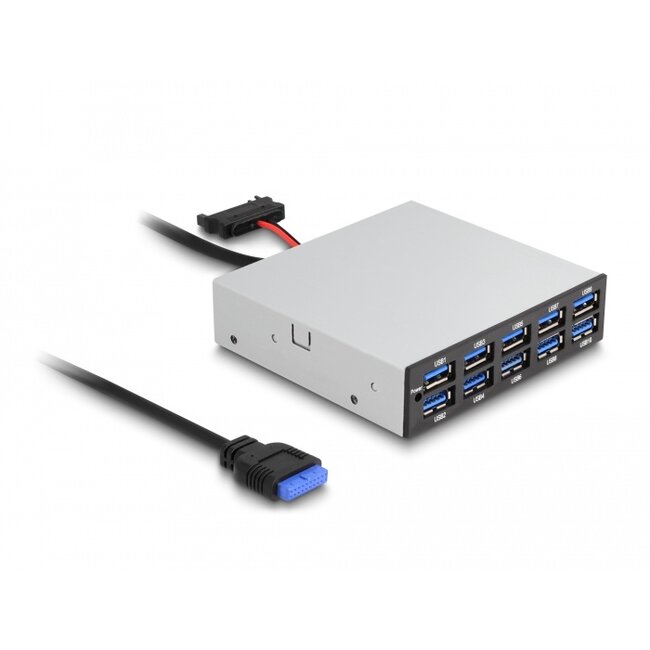

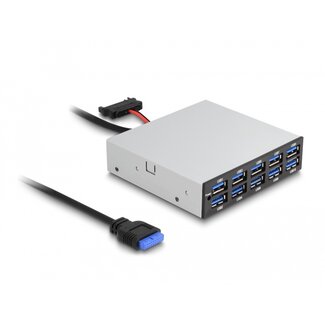

This hub by Delock can be installed into a 3.5″ bay of the PC. It will be connected internally via a USB pin header male on the motherboard. Up to 10 USB devices, as e.g. docking stations, card reader, external enclosures etc. can be connected.
Specification• Connectors:
external: 10 x USB 5 Gbps Type-A female
internal:
1 x 19 pin USB 5 Gbps pin header female port on the cable
1 x SATA 15 pin plug on the cable
• Chipset: VLI VL813
• Data transfer rate up to 5 Gbps
• Cable data: 1 x 19 pin USB pin header female cable, length ca. 54 cm (without
connectors)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play
• Linux Kernel 5.13 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free 3.5″ bay
• Motherboard with a free 19 pin USB pin header male
• Power supply with SATA 15 pin receptacle
Package content
• 3.5″ Hub

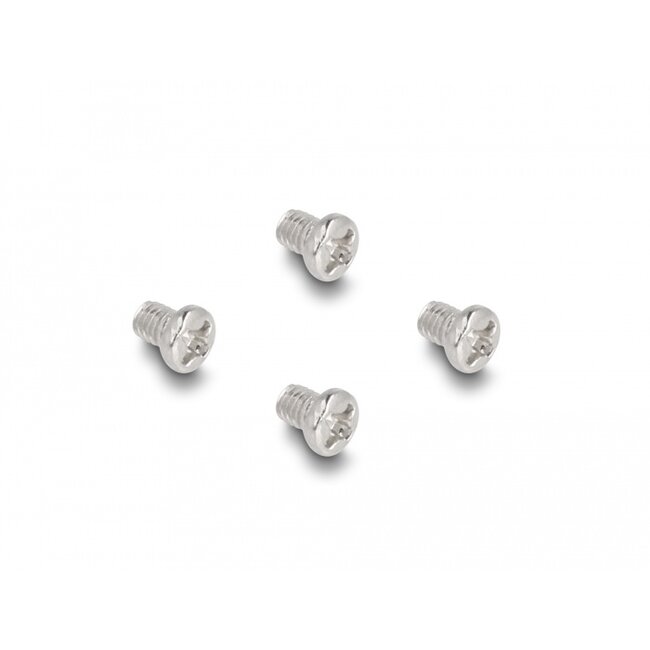

• Screws
• User manual
